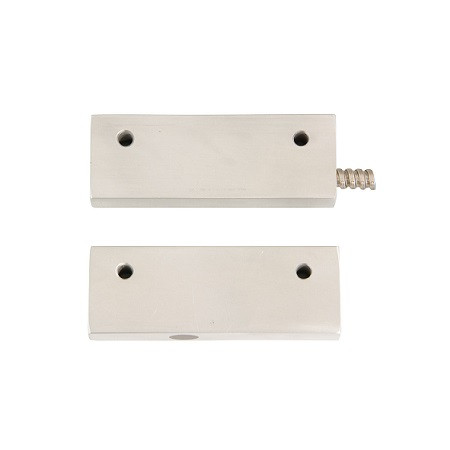

9530 Dormakaba RCI Balanced magnetic contact

Features:

• 50mA Max, 100VDC
• Surface-mount switch and magnet
• Utilizes two Form C high reliability Rhodium plated reed switches, one of the two reed switches being of different sensitivity, encapsulated in epoxy inside a solid aluminum case
• SPDT switch configuration with magnetic tamper
• When the rare earth magnet is in place and properly adjusted (balanced), the magnetic tamper switch 2 will be in a state opposite to the switch 1
• This normal configuration will change should one of the following occur; (1) switches 1 and 3 will change state by either the deliberate shunting of the magnetic field or if the door window is opened, and (2) the addition of a magnetic field such as an external magnet will cause the magnetic tamper switch 2 to change state
• End-of-line resistors may be used to allow a predetermined trickle of current to flow and permit operation from a supervised line at all times
• 18" Armored Cable, #22 AWG Wire Leads

Specifications

• Model - 9530
• Dimensions - 3-1/2"W x 1-1/4"H x 5/8"D (89mm x 32mm x 16mm)

Dormakaba RCI 9530 Balanced Magnetic Contact-Door Position Switch Ordering Guide PDF
