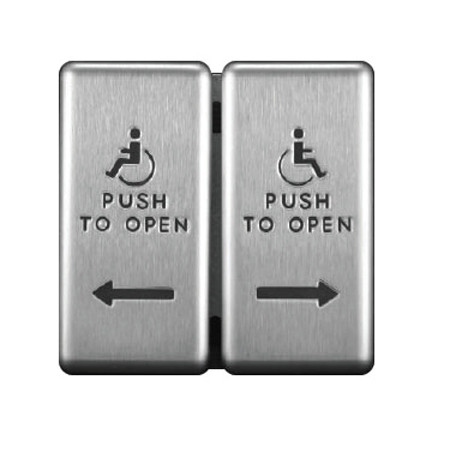

947HPA x 32D Dormakaba RCI Vestibule Plate with Text, Logo, and Arrows (Requires Two 3-Volt Transmitters) x 32D

Features:

• Rather than having 2 pushplates, the 947 series provides an aesthetically pleasing solution to the vestibule application
• Conserves energy by only opening necessary doors
• Stainless steel faceplate
• Tamper-Resistant
• An all-active plate activates with any "push" location
• Weather boot between plate and back plate for all weather applications
• Screws come in multiple sizes (#6 & #8) which fits both single and double gang mounting boxes
• Text and logo are baked onto the surface for maximum durability

The Vestibule plate provides an aesthetically pleasing solution for vestibule applications, providing a way to open both doors independently of one another. This pushplate is designed to fit into either double-gang or 4x4 electrical boxes. Typical uses include controlling inside and outside doors of a vestibule. The faceplates are made of 1/16" thick stainless steel for durable use. The pushplate may be hard wired to the door operator or connected to on of RCI’s line of radio-controlled transmitters.

Specifications

• 16 gauge, 304 2B Stainless steel faceplate
• 1/8" thick, Aluminum backplate
• Stainless Steel 6-32 x 1" and 8-32 x 1" Allen head mounting screws
• Cherry Switch: Single-pole, 15A, COM/NO/NC contacts
• 5/64" Allen key removes both 6-32 and 8-32 mounting screws
• Powdercoat then clear coated faceplates available on certain styles
• Wire nuts

947HPA x 32D Specifications PDF

947HPA x 32D Manual
