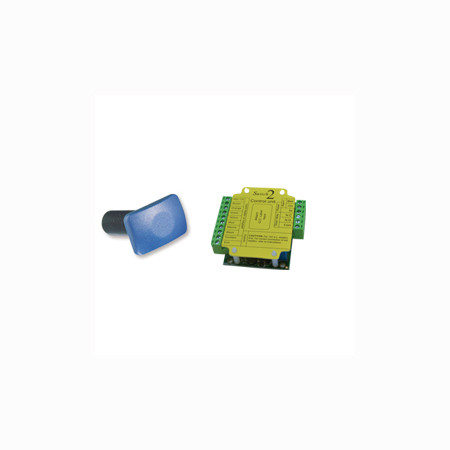

9323 Dormakaba More/Dormakaba RCI Keypads & Readers/RCI 9323 Easy Read Prox Micro Readers PROX READER /CONTROLLER KIT

Features:

• Single stand-alone low-cost solution
• Accepts up to 10,000 users
• Programs in seconds
• Efficient, flexible and secure
• Fast and easy to install
• Keyfobs or proximity cards are available, held in a convenient 10-token starter pack for safekeeping (sold separately)
• Tokens are powered by the reader and do not have batteries
• Aesthetically pleasing design

The Easy Read-Prox Micro version controls access of up to 10,000 users. All users can be individually voided without the user’s token. The Micro features electronics sealed in a water-resistant resin inside a tough UV stable ABS housing (9322). The wiring is sealed into the housing. Keyhole mounting backplate allows for easy and secure installation. The superb aesthetics of this reader make it popular with architects and other building specifiers.

Specifications

• Reader Cap Dimensions - 1-13/16"W x 1-7/8"H x 5/16"D(29.5mm x 48.0mm x 8.5mm)
• Control Unit Dimensions - 2-13/16"W x 2-3/4"H x 7/8"D (71.0mm x 70.0mm x 23.0mm)
• Number of Users - up to 10,000
• Operating Temperature - -4 to +131°F (-20 to +55°C)
• Voltage Input - Filtered, regulated 12VDC
• Cable - 16.5ft (5meters)
• Relay Rating - 1 to 60 seconds
• "Door Open" Time Frame - 1 to 60 seconds
• Read Range (9322)
  • Keyfob - 1-9/16" (40.0mm)
  • Prox Card - 3-1/8"(80.0mm)
• Warranty - 2 years
