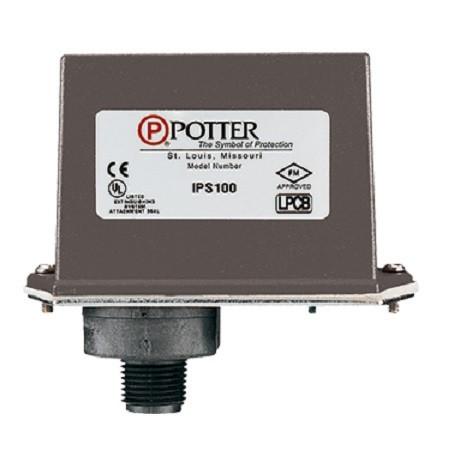

9000102 Potter IPS10-2 Pressure Switch Nylon 1/2" NPT Male 5-15 PSI

Features:

• Model Number - IPS10-2
• Item Number - 9000102
• Pressure Switch Nylon 1/2" NPT Male 5-15 PSI

The Model IPS and IPSB are pressure switches designed to indicate an increase or decrease in normal system pressure. On the two switch models the two switches operate independently of each other and each switch may be adjusted to actuate at any point within their adjustable range.

Specifications

• UL Listed and CSA Approved
• Dimensions - 4 3/4"W x 2 1/4"D x 4 3/8"H
• Enclosure - NEMA Type 4 for indoor or outdoor use. Cover - Die-cast with textured gray powdercoat finish Base - Plated Steel with one opening for 1/2" conduit
• Pressure Connection - 1/2" NPT Male
• Factory Adjustment - IPS10 and IPSB10: Operates on pressure increase at 6 PSI ±1PSI
• Differential Approx. (Not Adj.) - IPS10 - 2 lbs
• Adjustable Range - IPS10: 5-15 PSI
• Maximum Pressure - 250 PSI
• Switch Contacts - One or two Snap Action SPDT (Form C Contacts), 15.0 Amps at 125/250VAC, 0.5 Amps at 125 VDC, 0.25 Amps at 250 VDC
• Motor Ratings - 120VAC240VAC
• Horsepower - 1/8
• AC F.L.A. - 3.8
• AC L.R.A. - 22.8
• Pilot Duty Rating - 125 VA 120/240 VAC
• Ambient Temperature range - -40°/131°F (-40°/55°C)
• Media Temperature range - 32°/250°F (0°/121°C)

9000102 Datasheet
