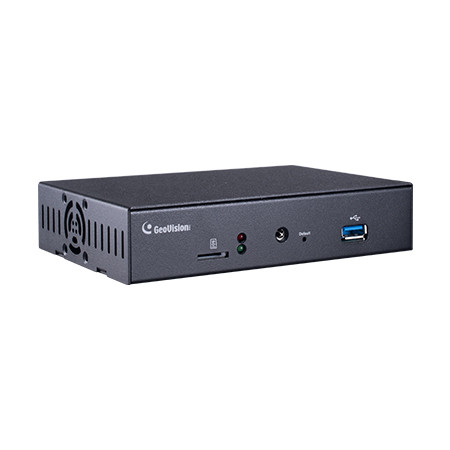

89-PN40100-K010 Geovisiuon GV-PN401 4K Network Signage Player

Features:

• Model Number: GV-PN401
• Manufacturer SKU Number: 89-PN40100-K010
• Sales Part Number: 710-PN401-000
• Multimedia support
• Video resolution up to 4K2K
• Support for HDMI out
• DC 12V / PoE (IEEE 802.3af)
• SD card and USB storage
• Digital Signage Management Server
• Content Schedule and Content Designer
• IR remote control and USB mouse control
• 10 languages supported

The PN401 is a digital media player designed to deliver uninterrupted playback of Digital Signage presentations. It supports not only the multimedia playback of up to 4K2K, but also the Digital Signage Management Server for managing multimedia contents remotely. IR remote control and USB mouse control are available for simple operation.

Specifications

• Video Format - Multimedia Support H.264 video: max 10 Mbit/s; H.265 video: max 5 Mbit/s
• Audio Format - G.711
• Photo Format - PNG / JPEG / BMP 1080p (1920 x 1080): max 2 MB; 2160p (3840 x 2160): max 4 MB
• Audio Output - HDMI / Phone Jack
• Video Output (HDMI) - 1080p at 30 / 60 Hz, 2160p at 24 / 30 Hz
• TV Standard - NTSC / PAL
• SD/SDHC Card - Class 4 or above (FAT32 and NTFS formats)
• USB - USB 2.0 backward compatible x 2 (FAT32); USB 3.0 backward compatible x 1 (FAT32 and NTFS formats)
• IR Remote Control & USB Mouse Control - Yes
• Power Adapter - 12V / 3A DC Jack (Max. 36 W), 802.3af
• Operating Temperature - 0°C ~ 40°C / 32°F ~ 104°F
• Operating Humidity - 20 % ~ 80 % (with no condensation)
• Weather Resistance - Indoor use only
• Dimensions (W x H x D) - 152 x 34 x 102 mm / 6 x 1.35 x 4.04 in
• Net Weight - 500 g / 1.10 lb
• Language - English / French / German / Italian / Japanese / Portuguese / Russian / Spanish / Traditional Chinese / Polski

Compatible Firmware and Software Versions

• Content Designer - V1.0.8 or later
• Content Schedule - V1.0.5 or later
• Digital Signage Management Server - V1.0.0 or later

89-PN40100-K010 Datasheet
