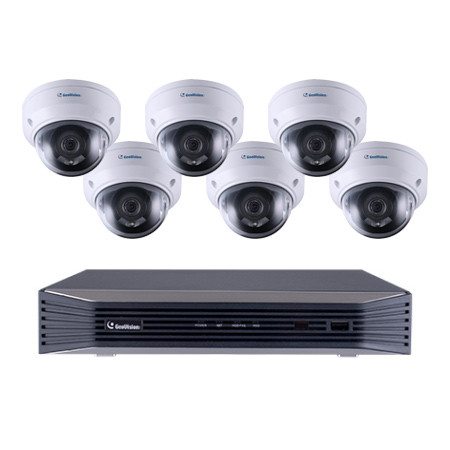

88-SN8TDR47-2TB Geovision 8 Channel at 4K (2160p) NVR 48Mbps Max Throughput w/ Built-in 8 Port PoE - 2TB with 6 x 4MP Outdoor Dome IP Security Cameras

Kit Includes:
• (1) 84-SNR0812-001U 8 Channel NVR with 2TB Storage
• (6) GV-TDR4700 4MP Outdoor Dome IP Security Cameras

• Manufacturer SKU Number: 88-SN8EBD27-2TB
• Sales Part Number: 801-SN8EBD27-2TB
• 8-Channel video recording
• Up to 3840 x 2160 resolution for each channel
• Dual streams support
• 8-Port PoE+ (IEEE 802.3at) for camera connection
• 4K (HDMI) / 1080P (HDMI/VGA) video output
• Two‐way audio
• 1 SATA HDD drawer (3.5") for up to 10 TB storage

Specifications

System

• OS - Embedded Linux
• No. of Drive Bay - 1 (3.5" HDD) Up to 10TB
• Power Source - Input: AC 100 ~ 240V, 50 ~ 60 Hz Output: DC 52V, 1.8A, Max. 100W PoE: Max. 100W
• Connectors
• Megabit Ethernet - port for WAN, RJ‐45 10/100 Mbps, 8 ports for LAN, RJ‐45 10/100 Mbps, PoE+ (IEEE 802.3at)
• Video Output - 4K (HDMI) / 1080p (HDMI / VGA)
• Audio - 1‐Ch, RCA (2.0 Vp‐p, 1 k Ω)
• USB 2.0 - Front: USB 2.0 Port x 1; Rear: USB 2.0 Port x 2
• I/O - 4 Inputs, 1 Output
• LED Indicator - 4 LEDs: Power, Network, HDD Fail, HDD Activity
• PoE - 8 LEDs for each port
• Operating Temperature - 32™F ~ 122™F
• Humidity - 0% ~ 90% RH (non‐condensing)
• Dimensions (L x W x H) - 10.24" x 9.45" x 1.73"
• Net Weight - 2.47 lb
• Regulatory - FCC, CE, BSMI, LVD, RoHS compliant

Video and Audio

• Video Compression - H.264, H.265
• Video Stream - Dual streams from H.264, H265
• Video Output - 4K / 1080p (HDMI / VGA)
• Display Division - 1 / 4 / 6 / 8 / 9
• Audio Compression - G.711
• Audio Support - Yes
• Two‐Way Audio - Yes

Supported Video Resolution

• 4:3 - Main Stream: 2560 x 2048, 2560 x 1920, 2048 x 1536, 2048 x 1520, 1600 x 1200, 640 x 480, 320 x 240, Sub Stream: 1024 x 768, 960 x 720, 640 x 480, 320 x 240
• 16 : 9 (Default) - 3840 x 2160, 2592 x 1520, 2560 x 1440, 2304 x 1296, 1920 x 1080, 1280 x 720, 640 x 360, 448 x 252, Sub Stream: 1280 x 720, 640 x 360, 448 x 252
• 5:4 - Main Stream: 1280 x 1024, 640 x 512, 320 x 256, Sub Stream: 1280 x 1024, 640 x 512, 320 x 256, 640 x 512, 320 x 256, 320 x 256
• 20 : 19 (Fisheye Camera Only) - Main Stream: 2176 x 2048, 2048 x 1944, 1792 x 1696, 1440 x 1376, 1280 x 1200, Sub Stream: 640 x 608

Operation

• Recording Bandwidth - Max. 48 Mbps for 8 channels
• Recording Mode - Round the clock / Motion Detection / Schedule Recording / Alarm‐triggered Recording
• Pre Recording - 1 ~ 10 sec.
• Post Recording - 30 sec
• Instant Playback - 3 min.
• Backup Type - USB storage device of FAT32 format

Management

• Language - Czech / English / French / German / Hungarian / Italian / Japanese / Portuguese / Russian / Slovakian / Slovenian / Spanish / Traditional Chinese
• Firmware upgrade - Upgrade through OSD or GV‐IP Device Utility

Network

• Network Type - LAN, WAN, Internet
• Protocol - DHCP, DynDNS, HTTP, NTP, ONVIF, RTSP, TCP, UDP

System Monitoring and Recovery

• Power Restoration - Automatic restart after power outage
• Monitoring - Software Watchdog

Remote Viewing

• Live View - Max. 8 channels connection
• Monitoring Environment - Brower IE browser, SNVR Viewer for non‐IE browsers, Mobile app
• Smart Device Access - GV‐Eye for iOS and Android
• Access from Web Browser - Live View, Image Snapshot, Picture in Picture, Picture and Picture, Digital PTZ

84-SNR0812-001U Specifications PDF
