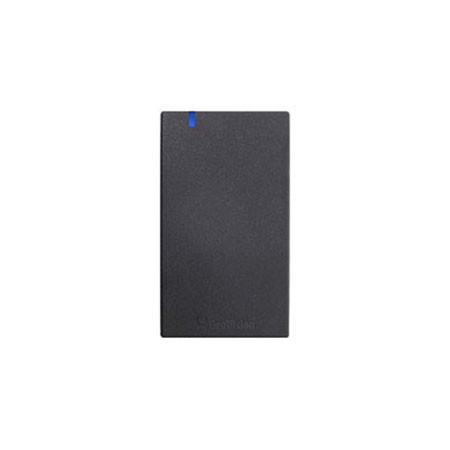

84-R135200-0200 Geovision GV-R1352 Card Reader 13.56MHz IP66 Outdoor Rated

Features:

Features:

Features:

• Card reader with weather?proof and IP66?compliant housing
• Wiegand interface supported
• RS?485 output: 9,600 bps, connect up to 8 GV?R1352 units
• 13.56 MHz for ISO14443A (Mifare DESFire, Mifare Plus and Mifare Classic)

Model Number: 84-R135200-0200

Specifications:

• CPU - 8-bit microprocessor
• Frequency - 13.56 MHz for ISO14443A (Mifare DESFire, Mifare Plus and Mifare Classic)
• Wiegand Interface - Wiegand 26 / 34 bits, distance 30 m (98.43 ft)
• RS-485 - 9,600 bps, connect up to 8 GV-R1352 units
• Power - DC 7.5V~12V
• LED - Red, Green and Blue LED
• Beeper - Buzzer
• Color - Black
• Supported ID Formats - Reads GID and UID
• Operating Temperature - -30 ™C ~ 65 ™C (-22 ™F ~ 149 ™F)
• Operating Humidity - 10 ~ 90% RH (non-condensing)
• Dimensions (W x H x D) - 65.80 x 115.6 x 20.5 mm (2.6 x 4.6 x 0.8 in)
• Weight - 120 g (0.26 lb)
• Ingress Protection - IP66
• Certification - CE, FCC, RoHS

84-R135200-0010 Cutsheet
