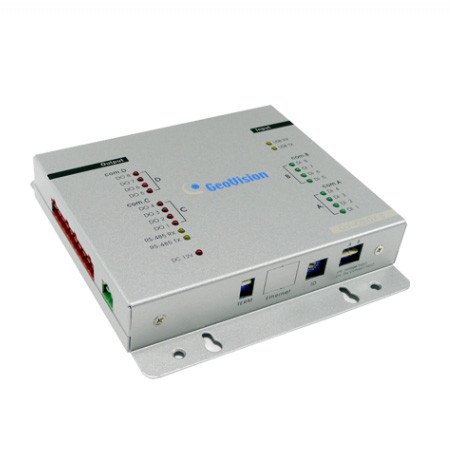

84-IOBOX08-1E4U Geovision GV-IO Box 8 Port with Ethernet Module

Features:

• Model Number: GV-IO Box
• Manufacturer SKU Number: 84-IOBOX08-1E4U
• 8 inputs and 8 outputs are provided
• Up to 9 pieces of GV-I/O Box 4/8/16 Ports can be chained together
• A USB port is provided for PC connection, and it is only used for 30 DC output voltage
• Up to 16 connections from GeoVision software are allowed to control one GV-I/O Box
• Optional support for an Ethernet module

The GV-IO Box 8 provides 8 inputs and 8 relay outputs. It supports both DC and AC output voltages, and provides a USB port for PC connection.

Specifications

• OS Supported - 32-bit: Windows 7 / 8 / 8.1 / 10 / Server 2008, 64-bit Windows 7 / 8 / 8.1 / 10 / Server 2008 R2 / Server 2012 R2
• Compatible S/W - GV-DVR / NVR / VMS, GV-ASManager, GV-Control Center
• Input - 8
• Input Signal - Dry Contact, Wet Contact, 9-30V AC / DC
• Relay Output - 8
• Relay Status - Normal open
• Relay Capacitance - USB Connection 30V DC, 3A
• RS-485 Connection - 125 / 250V AC, 3A 30V DC, 3A
• TCP/IP Connection - 125 / 250V AC, 3A 30V DC, 3A
• Ethernet - RJ-45, 10/100 Mbps
• DC IN - DC 12V, 1A
• Address - 0-9, A-F
• Terminal Resistance - 120 ohm
• Environmental Conditions - 32 ~ 122 °F 5% ~ 95% (non-condensing)
• Dimensions (W x H x D) - 5.31" x 1.10" x 5.70"

84-IOBOX08-1E4U Datasheet
