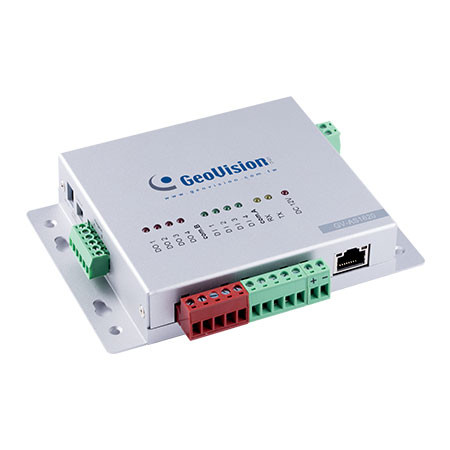

84-AS16200-0100 Geovision GV-AS1620 Single Door IP Controller

Features:

• Model Number: GV-AS6520
• Manufacturer SKU Number: 84-AS16200-0100
• Sales Part Number: 510-AS1620-000
• One door IP controller (entry and exit)
• 3 types of interfaces, Wiegand, RS-485 and TCP/IP, supporting 2 readers for each interface
• 4 digital inputs for door contact, exit button, fire contact and tamper contact
• 4 relay outputs for lock, alarm, 2 LED for an access granted and access denied
• DC 12V, 3A / PoE+ (IEEE 802.3at)
• Suitable for door, parking lot and elevator controls
• Stores up to 100,000 cards
• ONVIF (Profile C) conformant

GV-AS1620 is a single door controller with three types of interfaces, Wiegand, RS-485 and TCP/IP, to accommodate various readers for entry and exit management. Through its I/O pins, it provides not only basic door operations but also alarm, tamper and fire senor applications, as well as allowing LEDs connected to indicate an access granted and denied.

Specifications

System Requirements

• GV‐ASManager Version - GV‐ASManager V5.2.0 or later

Hardware

• Wiegand Interface - 2 Wiegand interfaces, 26 ~ 64-bit format, 12V DC power supply, 200 mA
• RS-485 Interface - 1 RS-485 interface for max. 2 GV-Readers (GV-CR420 / GV-DFR1352 / GV-SR1251 / GV-Reader1251 / GV-R1352 / GV-RK1352 / GV-WTR)
• TCP/IP Interface - RJ-45, 10 / 100 Mbps, 1 TCP/IP interface for max. 2 GV-Readers (GV-CR420 / GV-FR2020 / GV-CR1320 / GV-GF1921 /
• Digital I/O - Input 4 inputs, Dry Contact, NO / NC, Output 4 relay outputs (DC 30V, 3A; 110V AC ~ 250V AC, 3A), NO / NC
• Power - 12V DC, 3A / PoE+ (IEEE 802.3at, provides up to 25.5W)
• Operating Temperature - 0°C ~ 65°C / 32°F ~ 149°F
• Operating Humidity - 5% ~ 95% RH (Non-Condensing)
• Dimensions - 111.4 x 27.5 x 101 mm / 4.39 x 1.08 x 3.98 in (case included)
• Weight - 235 g / 0.52 lb (case included)
• Ingress Protection - IP54
• Regulatory - CE, FCC, RoHS compliant

Network

• Interface -  10/100 Ethernet
• Protocol - DHCP, DynDNS, HTTPS, NTP, TCP, ONVIF (Profile C)
