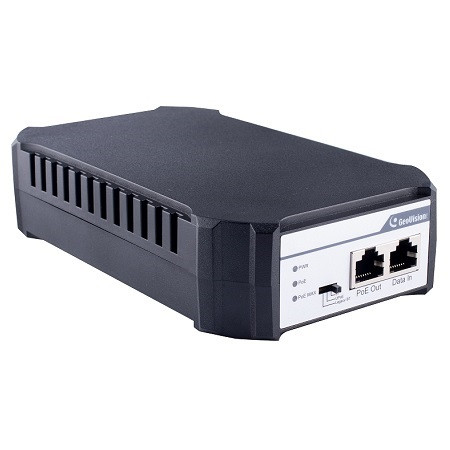

84-APA903B-001U Geovision GV-PA903BT Gigabit BT PoE++ Adapter

Features:

• Model Number - GV-PA903BT
• Manufacturer SKU Number - 84-APA903B-001U
• Ordering Part Number - 140-APA903B-G00

GV‐PA903BT is a Gigabit PoE (Power over Ethernet) adapter. The adapter supports the IEEE802.3af/at/bt Power over Ethernet standard, with a maximum power output of 95 W over a single Ethernet cable. You can mount an IP camera anywhere in a building where power outlets are scarce by using the PoE adapter.

Specifications

• Port - Data in port: 1 x 10/100/1000 Mbps RJ-45 port, PoE out port: 1 x 10/100/1000 Mbps RJ-45 port
• Power Source - High Power Over Ethernet (Max. 95 W)
• PoE Power Output - DC 54V (Max. 95 W)
• Ethernet Cable Length - Max 100 m (328 ft) from GV-PA903BT to IP device, CAT5e, 6
• Power Input - AC 100V ~ 240V, 50/60 Hz
• Operating Temperature - 0°C ~ 40 °C (32 °F ~104°F )
• Storage Temperature - -40 °C ~ 70 °C (-40 °F ~158°F )
• Humidity - Operating Humidity: 10% ~ 90% non-condensing, Storage Humidity: 5% ~ 90% non-condensing
• Surge Protection - ±4 kV
• Dimensions (L x W x H) - 170 x 100 x 40 mm (6.69” x 3.94” x 1.57”)
• Weight - 0.76 kg (1.68 lb)
• Standard - IEEE802.3af/at/bt

GV-PA903BT Datasheet
