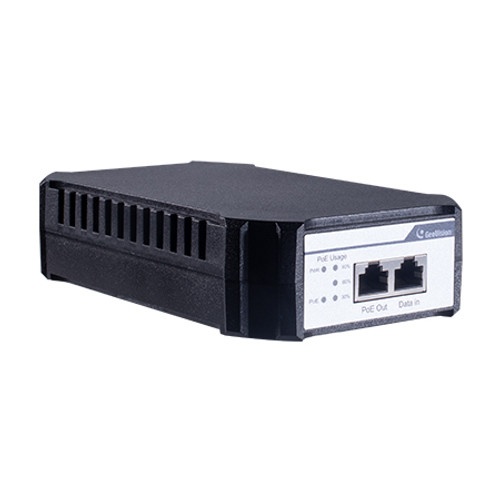

84-APA902B-001U Geovision GV-PA902BT 1 Port Gigabit PoE Adapter

Features:

• Model Number: GV-PA902BT
• Manufacturer SKU Number: 84-APA902B-001U
• Sales Part Number: 140-APA902B-G00
• 1-Port 10/100/1000 Mbps Gigabit Power over Ethernet (PoE) adapter
• Supports IEEE802.3af/at/bt Power over Ethernet standard, with a maximum power output of 95 W through a single Ethernet cable

GV‐PA902BT is a 1-Port 10/100/1000 Mbps Gigabit Power over Ethernet (PoE) adapter. The adapter supports IEEE802.3af/at/bt Power over Ethernet standard, with a maximum power output of 95 W through a single Ethernet cable. Adopting the PoE adapter enables you to mount an IP camera anywhere in a building where power outlets are not available.

Specifications

• Port - Data in port: 1 x 10/100/1000 Mbps RJ‐45 port, PoE out port: 1 x 10/100/1000 Mbps RJ‐45 port
• Power Source - High Power Over Ethernet (Max. 95 W)
• PoE Power Output - DC 54V (Max. 95 W)
• Ethernet Cable Length - Max 100 m (328 ft) from GV‐PA902BT to IP device, CAT5e, 6
• Power Input - AC 100V ~ 240V, 50/60Hz
• Operating Temperature - 0°C ~ 40 °C (32 °F ~104°F )
• Storage Temperature - ‐40 °C ~ 70 °C (‐40 °F ~158°F )
• Operating Humidity - 10% ~ 90% non‐condensing
• Storage Humidity - 5% ~ 90% non‐condensing
• Dimensions (L x W x H) - 170 x 102 x 40 mm (6.69" x 4.01" x 1.57")
• Weight - 0.95 kg (2.09 lb)
• Standard - IEEE802.3af/at/bt
• Energy Efficiency Grade - 6

84-APA902B-001U Datasheet
