8375 X 28 Dormakaba RCI Surface Micromag 12/24VDC X 28
(No reviews yet)
Write a Review
Write a Review
Dormakaba

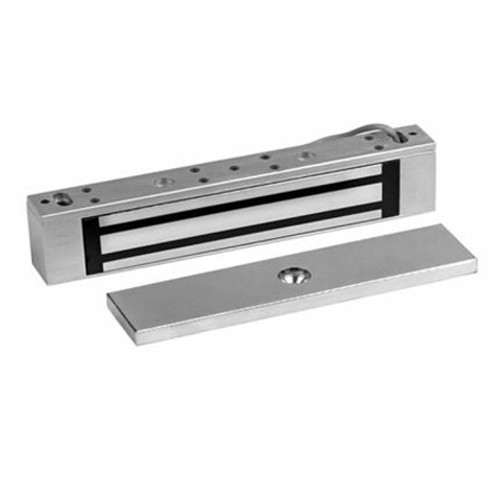

8375 X 28 Dormakaba RCI Surface Micromag 12/24VDC X 28
MSRP:
$342.00
$201.00
(You save
$141.00
)
- Brand
- Dormakaba
- SKU:
- 8375 x 28
Features:
- Low-profile design
- Low energy consumption
- Field selectable voltage - 12/24VDC
- MOV surge protection
- Hardened steel armature nut
- Brushed Anodized Aluminum finish
This uniquely small electromagnetic lock is ideal for small enclosures.
The compact size offers secure locking for cash drawers, machinery access covers, vending machines, filing cabinets and many other applications.
Specifications
- Housing Dimensions - 13/16" D x 1-1/2" W x 6-17/32" L (20.6mm x 38.1mm x 165.9mm) (including 1/8" (3.2mm) mounting bracket)
- Armature Plate Dimensions - 3/8" D x 1-1/4" W x 5-1/8" L (9.6mm x 31.8mm x 130.2mm)
- Voltage
- Field selectable 12/24 VDC
- Tolerance ±10%
- Power/Current Requirements
- Max 0.36A at 12 VDC
- Max 0.18A at 24 VDC
- Holding Force - Up to 300 pounds
- Wiring Requirements - 2 wires power input
Dormakaba RCI 8375 Surface MicroMag 8380 GateMag Ordering Guide PDF
