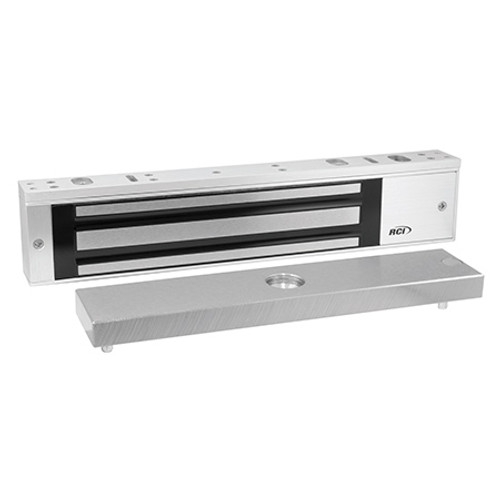

8371 SCS x 40 Dormakaba RCI Single MiniMag SCS 12/24VDC x 40

Features:

• Larger LED for better visibility (SCS versions only)
• Low energy consumption
• Field selectable voltage - 12/24 VDC
• Stabilizing 4 bolt "Drop Stop" mounting (8-bolt for 8372)
• Adjustable keyhole mounting
• MOV surge protection
• No residual magnetism
• Easy-access wiring cavity

Our low-profile MiniMags have been extremely popular for interior traffic control. These short electromagnetic locks install perfectly alongside most automatic door operators or stop-mounted door hardware, reducing installation time and eliminating the need for extra brackets.
The MiniMags design of 1-7/8" width helps keep undersized openings within code. This is the ideal magnet for use on narrow-style aluminum doors!

Specifications

• Housing Dimensions - 1"D x 1-7/8"W x 9-3/8"L (25mm x 48mm x 238mm) (including 3/16" (4.8mm) mounting bracket)
• Armature Plate Dimensions - 1/2"D x 1-1/2"W x 7-1/4"L (13mm x 38mm x 185mm)
• Voltage
  • Field selectable 12/24 VDC
  • Tolerance ±10%
• Power/Current Requirements
  • Max 0.52A at 12 VDC
  • Max 0.26A at 24 VDC
• Holding Force - One-point locking (up to 750 pounds)
• Output Relays
  • SCS (with LED) – SPDT 1.0A @ 24VDC
  • DSS – SPST 0.20A @ 12VDC and 0.12A @ 24VDC
• Wiring Requirements - 2 wires – power input Up to 5 wires output
• Operating Temperature - 14 to 140° F (-10 to 60° C)
• Certification - cULus Listed, CSFM
