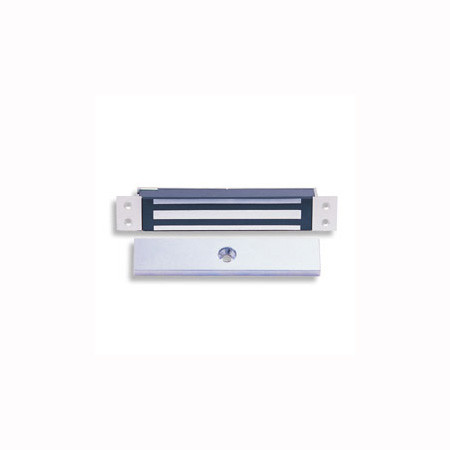

8360 X 28 Dormakaba RCI MORTISE MINIMAG 12/24VDC X 28
MSRP:
$539.00
$316.00
(You save
$223.00
)
- Brand
- Dormakaba
- SKU:
- 8360 x 28
Features:
- Brushed Anodized Aluminum finish
- Low energy consumption
- Field-selectable voltage 12/24VDC
- MOV surge protection
- Hardened steel armature nut
- Built-in Remote Lock Status (RLS) (8360 only)
- No residual magnetism
- Low-profile design
Our low-profile 8360 mortise MiniMag is specifically designed to provide a secure hold (up to 750 lbs. holding force) on sliding doors.
Specifications
- Housing Dimensions - 1-1/16" D x 1-1/2" W x 9" L (26.9 x 38.1 x 228.6mm) (including 3/4" mounting tabs)
- Armature Plate Dimensions - 1/2" D x 1-1/2" W x 7-1/4" L (12.7 x 38.1 x 184.2mm)
- Voltage
- Field selectable 12/24 VDC
- Tolerance ±10%
- Power/Current Requirements
- Max 0.50A at 12 VDC
- Max 0.25A at 24 VDC
- Holding Force - One-point locking (up to 750 pounds)
- Output Contacts - 0.20A @ 12 VDC and 0.12A @ 24 VDC Dry Output Form C
- Wiring Requirements - 2 wires power input 2 wires relay output
Dormakaba RCI 8360 Mortise MiniMag 8365 Mortise MicroMag Ordering Guide PDF
