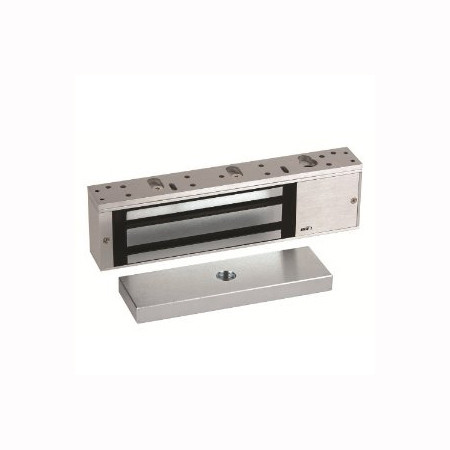

8310 DSS/SCS x 28 Dormakaba RCI SINGLE MAG DSS/SCS 12/24VDC X 28

Features:

• Larger LED size for better visibility (SCS versions only)
• Brushed Anodized Aluminum or Brushed Adonized Dark Bronze finish
• Adjustable keyhole mounting
• Built-in time delay (instant release with adjustable relock, programmable from 0-110 seconds)
• Field selectable voltage - 12/24VDC
• Convenient plug-in wiring terminals
• Easy-access wiring cavity
• Stabilizing 4-bolt "Drop Stop" mounting (8-bolt for 8320)

These hard-working multi-purpose electromagnetic locks enhance building security and install quickly. Several standard features make these magnets the "workhorse" of the industry.
The adjustable mounting bracket has been enhanced with keyhole mounting to support the magnet’s weight during initial installation, freeing the installer’s hands to affix the magnet mounting screws. The removable cavity cover offers quick, easy access to wiring.

Specifications

• Housing Dimensions - 1-5/8" D x 2-7/8" W x 10-1/2" L (41mm x 73mm x 268mm) (including 1/4" (6mm) mounting bracket)
• Armature Plate Dimensions
  • Standard 5/8" D x 2-3/8" W x 7-7/16" L (16mm x 61mm x 190mm)
  • Optional 3/8" D x 2-3/8" W x 7-7/16" L (10mm x 61mm x 190mm)
• Voltage
  • Field selectable 12/24 VDC
  • Tolerance ±10%
• Power/Current Requirements
  • Max 0.28A at 12 VDC
  • Max 0.28A at 24 VDC
• Holding Force - One-point locking (up to 1500 pounds)
• Output Relays
  • SCS (with LED) – SPDT 1.25A @ 24VDC
  • DSS – SPDT 0.20A @ 12VDC and 0.12A @ 24VDC
• Wiring Requirements - 2 wires – power input Up to 4 wires output
• Adjustable Time Delay - 0 to 110 seconds
• Operating Temperature - 14° to 140° F (-10° to 60° C)
• Certification - cULus Listed, CSFM
