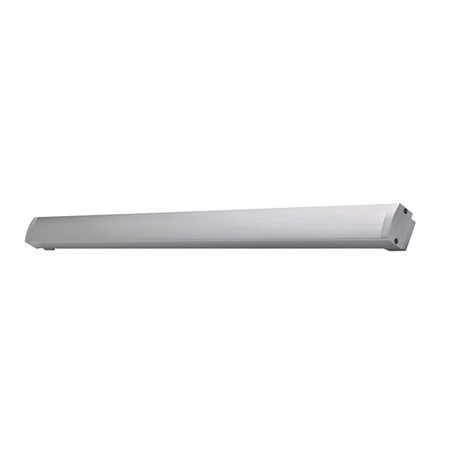

6451-36 x 4 Dormakaba RCI 36" Exit Sensor Bar US4 Finish

Features:

• Offers immediate "no prior knowledge" egress by pushing on the bar at any point
• Optical sensing electronics controlling lock and signal functions have no moving parts to wear out
• Built-in redundant mechanical switch for back-up release
• No tune-in required - complicated calibration and fine tuning are unnecessary and return calls are eliminated
• Three standard bar lengths are offered - contact factory for custom lengths
• Bar may be activated by anything - human touch, briefcase, cane, wheelchair, etc.
• Ideal for ADA compliant installations
• Weather-resistant electronics - conformal coated circuitry resists moisture damage

Specifications

• Voltage - 12-24VAC/VDC
• Current - 105mA max
• Duty - Continuous
• Dimensions - 2-3/8" H x 2-7/16" D (60mm x 62mm)

6451-36 x 4 Specifications PDF

Dormakaba RCI 6451 Exit Sensor Bar Ordering Guide PDF
