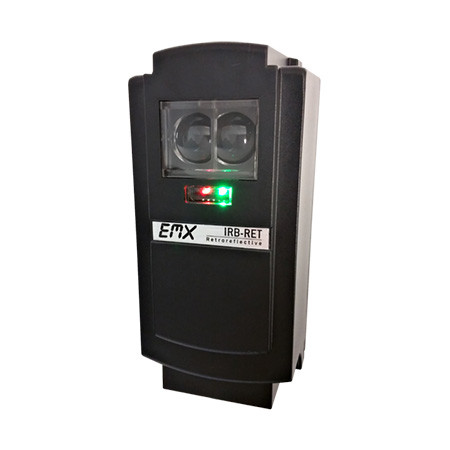

620-101287 Linear IRB-RET Photo Eye Reflective with Hood

Features:

• Retroreflective configuration
• UL325-2018 compliant
• Five (5) monitoring interfaces
• 60 ft. operating range
• Easy installation and set-up
• Compatible with many operators

The IRB-RET is a monitored, weather-proof retroreflective photoeye solution providing entrapment protection for automatic gates and doors. Retroreflective configuration eliminates the need for a separate transmitter and the associated wiring across a roadway to reduce installation costs. The IRB-RET photoeye unit is UL325-2018 compliant and housed in a rugged NEMA 4X enclosure suitable for indoor and outdoor use.

The universal design of the IRB-RET allows it to be used with a wide variety of monitored operators. Additionally, it is compatible with most non-monitored legacy products.

This universal UL325 retroreflective photoeye is supplied with a mounting bracket, hardware and reflector.

Specifications

• Operating range - Up to 60 ft. (18.3 m)
• Sensitivity adjustment - Potentiometer
• Power indicator - Green LED
• Detect indicator - Red LED
• Mode selection switch - 3 modes, relay output, pulsed (3 frequency), pulsed (2 frequency)
• Pulse output - 2 wire/4 wire
• Relay output operation - Light on/dark on selection
• Relay output - Form C contacts (NO, COM, NC)
• Resistive termination - 10k Ohm across NO contact
• Power protection - Thermal fuse
• Transmitter power cycle - >300mS (for use in configuration 0 Monitored)
• Power supply - 6…40 VDC, 12...24VAC @60Hz (configuration 0-relay only)
• Current (config. 1 and 2) - 15mA (12VDC, includes TX and RX wired in parallel)
• Current (config. 0) - 60mA (relay activated)
• Operating temperature - -40F - 140
• Environmental - NEMA 4X
• Dimensions (L x W x H) - 3.1"W 2.7"D 6.6"H
• Weight - 0.7 lbs
• Connections - 7 terminal
