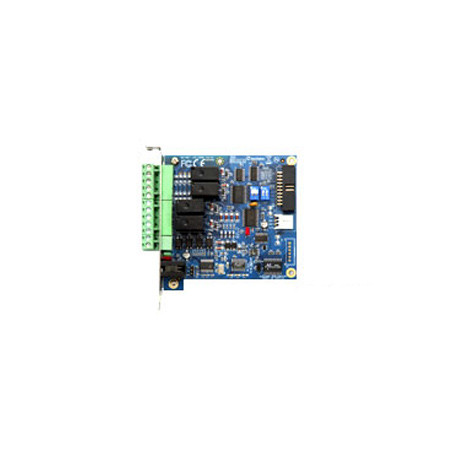

55-IOCRD-320 Geovision GV-NET I/O V3.2 - 4 Alarm Inputs & 4 Relay Outputs plus RS-485 to RS-232 Converter w/ USB Support
(No reviews yet)
Write a Review
Write a Review
Geovision
55-IOCRD-320 Geovision GV-NET I/O V3.2 - 4 Alarm Inputs & 4 Relay Outputs plus RS-485 to RS-232 Converter w/ USB Support
MSRP:
$90.00
$69.00
(You save
$21.00
)
- Brand
- Geovision
- SKU:
- 55-IOCRD-320
Features:
- Model Number: GV-Net/IO Card
- Manufacturer SKU Number: 55-IOCRD-320
- Sales Part Number: 400-IOCRD-000
- 4 inputs and 4 relay outputs
- 250VAC/30VDC
- USB Port
Specifications
- OS Supported 32-bit - Windows XP / Vista / 7 / 8 / Server 2008
- OS Supported 64-bit - Windows 7 / 8 / Server 2008 / Server 2012
- Input - 4
- Input Signal - Dr-Contact
- Input Signal - Wet-Contact : 9~30V AC/DC
- Relay Output - 4
- Relay Status - Normal Open
- USB Connection - 30V DC, 3A
- RS-232 Connection - 125 / 250V AC, 3A 30V DC, 3A
- Interface - RJ-11 to DB9, RJ-11 to USB, 3-pin internal USB to internal USB
- Mode Switch - I/O Box Mode - Without GV‐Video Capture Card
- Mode Switch - NET/IO Card Mode - With GV‐Video Capture Card
- Address - 1-4
- Communication - RS-485, USB, RS-232
- Environmental Conditions - 0~50°C / 32~122°F , 5%~95% (non‐condensing)
- Dimensions (W x H) - 90 x 99 ( mm) / 3.90 x 3.54 (in)
