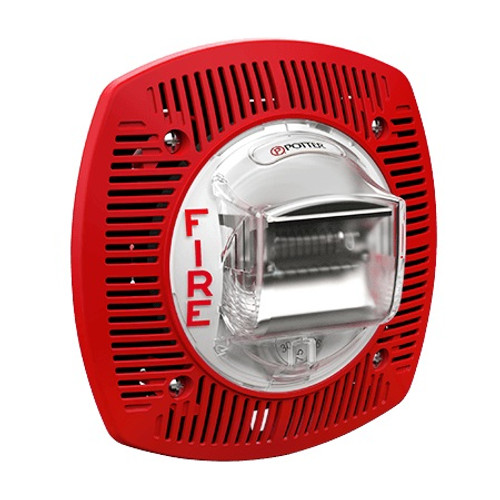

4890308 Potter SPKSTR-24WLPPR-WP Weather Proof Speaker/Strobe - No Label - Red - Non-Returnable

Features:

Special Order/Non-Cancelable/Non-Returnable

• 24VDC fixed 15/75 candela
• FASPK-WP, SPKST24-WP series shipped with Potter SPKRBB outdoor back box
• Field selectable power taps: 1/8W, 1/4W, 1/2W, 1W, 2W, 4W
• High quality dBA output (intelligible)
• Frequency range 400-4000 Hz
• Screw terminals, separate in/out wiring (18-12 gauge)
• Tamperproof grill
• Speaker voltage 25 or 70.7 VRMS standard, field selectable

The FASPK-WP Series provides a 25 or 70.7 VRMs speaker with field selectable power taps of 1/8W, 1/4W, 1/2W, 1W, 2W, or 4W. The SPKST24-WP provides a fixed 15/75 candela strobe output. The strobe can be synchronized using the Potter AVSM Synchronization Control Module, FACP, or power supplies that produce a Gentex Synchronization Protocol.

Specifications

• Speaker Operating Voltage - 25VRMs or 70.7VRMs
• Strobe Operating Voltage - 16-33VDC
• Synchronization Module - Potter AVSM
• Environmental Limitations - -31°F to 150°F
• Unit Dimensions - FASPKR - 6.1” square X 3.19”deep, SPKSTR-24 - 6.1” square X 4.0625”, deep
• Back Box - Includes GBLP outdoor back box

Product Listings

• UL S2657
• ANSI/UL 1480, ANSI/UL1638 Listed
• CSFM 7320-0328:0206 (FASPK-WP), 7320-0328:0207 (SPKSTR-24WP)

Product Compliance

• Americans with Disabilities Act (ADA)
• NFPA 72
• IBC/IFC/IRC

4890308 Datasheet
