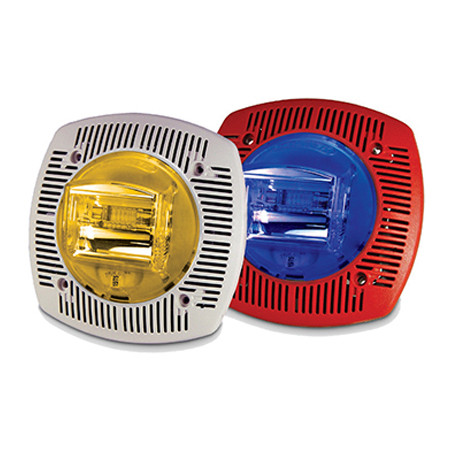

4890232 Potter CSPKSTR-24BR Wall 15/75 Amber Strobe Speaker Plain Red

• Model Number: CSPKSTR-24BR
• Item Number: 4890232
• 24VDC fixed 15/75 candela strobe
• Lens colors available - amber, blue, green, and red
• Amber versions come with ALERT wording
• Speaker voltage 25 or 70.7 VRMs standard, field selectable
• Field selectable power taps - 1/8W, 1/4W, 1/2W, 1W, 2W, 4W
• Xenon strobe maintains constant flash rate (1Hz)
• High quality dBA output (intelligible)
• Frequency range 400-4000 Hz

The CSPKSTR-24 Series offers a 24VDC, fixed 15/75 candela strobe in lens colors of amber, blue, green, and red. The CSPKSTR-24 provides a 25 or 70.7 VRMs speaker with field selectable power taps of 1/8W, 1/4W, 1/2W, 1W, 2W, or 4W. The strobes can be synchronized using the Potter AVSM Synchronization Control Module, FACP, or power supplies that produce a Gentex Synchronization Protocol.
The CSPKSTR-24 can be mounted to a 4” X 2 1/8” deep back box without an extension ring or using Potter SPKRBB surface back box.
The CSPKSTR-24 grills are constructed of high impact textured plastic.

Specifications

• Speaker Operating Voltage - 25VRMs or 70.7VRMs
• Strobe Operating Voltage - 16-33VDC
• Synchronization Module - Potter AVSM
• Environmental Limitations
  • 32°F to 120°F
  • Indoor Only
• Unit Dimensions
  • 6.1” (15.494cm) square
  • X 1.88” (4.7752cm) deep
• Back Box
  • 4” X 2 1/8” deep box or Potter
  • SPKRBB surface back box
• Shipping Weight - 1.5 lbs

4890232 Datasheet
