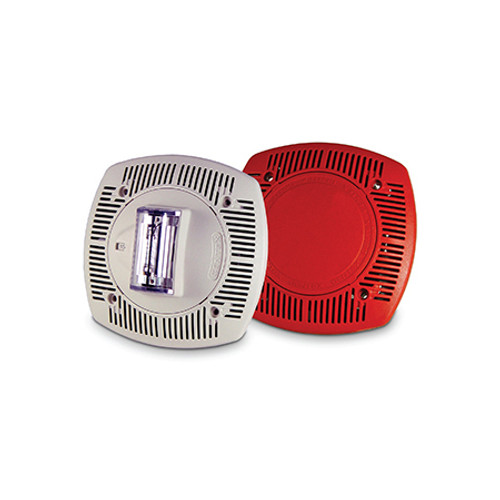

4890221 Potter SPKSTR-24CLPW Ceiling Selectable Strobe Speaker White

• Model Number: SPKSTR-24CLPW
• Item Number: 4890221
• 24VDC tamperproof selectable candela options of 15, 30, 60,75, and 110
• Speaker voltage 25 or 70.7 VRMs standard, field selectable
• Field selectable power taps - 1/8W, 1/4W, 1/2W, 1W, 2W, 4W
• High quality dBA output (intelligible)
• Frequency range 400-4000 Hz
• Screw Terminals, separate in/out wiring (18-12 gauge)
• Tamperproof grill
• Faceplate available in red or off-white

The SPKSTR-24CLP has high output tamperproof candela selections of 15, 30, 75, 95, and 115. The SPKSTR-24CLP and FASPKR provide a 25 or 70.7 VRMs speaker with field selectable power taps of 1/8W, 1/4W, 1/2W, 1W, 2W, or 4W. The SPKSTR-24CLP strobes can be synchronized using the Potter AVSM Synchronization Control Module, FACP, or power supplies that produce a Gentex Synchronization Protocol.
The SPKSTR-24CLP and FASPKR can be mounted to a 4” X 2 1/8” deep back box without an extension ring or Potter SPKRBB surface back box.
The SPKSTR-24CLP and FASPKR are constructed of high textured plastic.

Specifications

• Speaker Operating Voltage - 25VRMs or 70.7VRMs
• Strobe Operating Voltage - 16-33VDC
• Synchronization Module - Potter AVSM
• Environmental Limitations
  • 32°F to 120°F
  • Indoor Only
• Unit Dimensions
  • 6.1” (15.494cm) square
  • X 1.88” (4.7752cm) deep
• Back Box
  • 4” X 2 1/8” deep box or Potter
  • SPKRBB surface back box
• Shipping Weight - 1.5 lbs.
