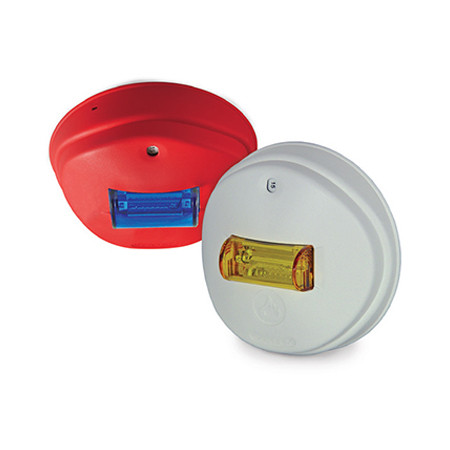

4890131 Potter CCHS-24BW Ceiling Mount Selectable Horn/Strobe Blue Lens White Body

• Model Number: CCHS-24BW
• Item Number: 4890131
• Nominal voltage 24VDC
• Tamperproof field selectable candela options of 15, 30, 75, 95 115
• Lens colors available: amber, blue, green and red
• Super-Slide - Ease of Supervision Testing
• Checkmate - Instant Voltage Verification
• Synchronize strobe and/or horn using the Potter AVSM Control Module
• Prewire entire system, install mounting bracket, then install signals
• Input terminals accept 12 to 18 AWG

The Potter CCHS Colored Lens Series are ceiling mount strobe or horn/strobe combinations that offer dependable audible and visual alarms for warning and emergency notification. Applications include emergency communication, severe weather, emergency response, and many more.
The Colored Lens Series are 24VDC appliances available in lens colors of amber, blue, green and red. The series offers tamperproof field selectable candela options of 15, 30, 75, 95 and 115 candela. The CCHS Colored Lens Series has a minimal operating The CCHS Colored Lens Series is shipped with a die cast 4" mounting plate which incorporates the popular Super-Slide feature that allows the installer to easily test for supervision. The product also features a locking mechanism that secures the product to the bracket without showing any screws.

4890131 Datasheet
