4890012 Potter S-24PWR Wall Selectable Strobe Plain Red

• Model Number: S-24PWR
• Item Number: 4890012
• 24VDC units have field selectable candela options of 15, 30, 60,75, & 110
• Super-Slide Bracket - Ease of Supervision Testing
• Checkmate - Instant Voltage Verification
• Synchronize strobe and/or horn with AVSM Control Module
• Prewire entire system, install mounting bracket, then install signals
• Documented lower installation and operating costs
• Input terminals accept 12 to 18 AWG
• Switch selection for high or low dBA

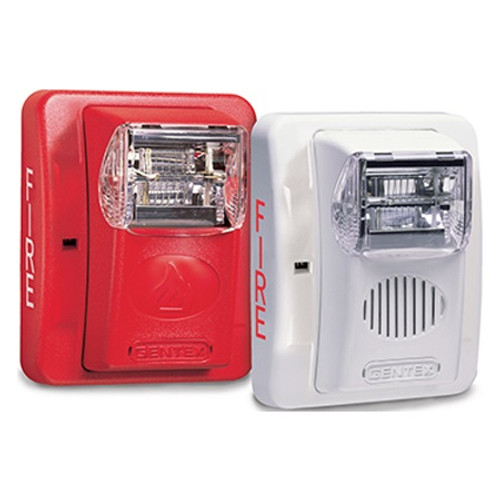

The S-24/HS-24 Series is a low profile strobe and horn/strobe combination that offers dependable audible and visual alarms and the absolute lowest current available.
The S-24 & HS-24 Series 24VDC offers tamperproof field selectable candela options of 15, 30, 60, 75, and 110 candela.
The Strobe and Horn/Strobe offers a continuous or sync temporal three in 2400Hz and mechanical tone, a chime and whoop tone. All tones are easy for the professional to change in the field by the use of switches.
The S-24 & HS-24 Series has a minimal operating current and has a minimum flash rate of 1Hz regardless of input voltage.
This Series is shipped with a standard 4" metal mounting plate which incorporates the popular Super-Slide feature that allows the installer to easily test for supervision. The product also features a locking mechanism which secures the product to the bracket without any screws showing.

4890012 Datasheet
