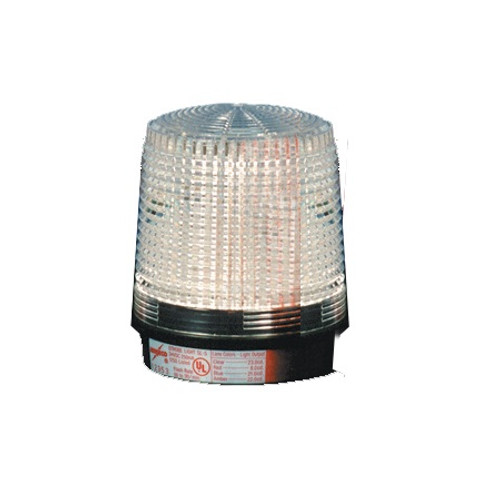

4670026 Potter SL-5A-C 12/24VDC SL-5A 4 Wire Clear Strobe

• Model Number: SL-5A-C
• Item Number: 4670026

The SL-5A series strobes are a high performance, high intensity, solid state strobe, designed for applications where 360° visual annunciation is required. The strobe is polarized for connecting to supervised circuits and is designed with a xenon flash tube. The SL-5A is a high profile strobe with a low current draw of 250mA at 24V DC. The strobe can be used as a stand alone or in combination with other signaling devices to provide a visual verification signal. The SL-5A series strobes are recommended for use in areas such as; parking facilities, schools, corridors, apartments, office buildings, restaurants, hotels, and any other application where effective visual warning is required. Installation must comply in accordance with applicable standards and/or all state and local electrical codes and authority having jurisdiction.

• Polarized using filtered DC or unfiltered FWR input voltage
• 12/24V DC selectable voltage
• Solid state circuitry and a xenon flash tube
• Impact resistant black abs base v
• Interchangeable polycarbonate lens
• Optional surface mount plate Model 4SP-MWv
• Replacement interchangeable lens Model SL-LG
• Over 200 hours of operating life
• Operating Temperature Range - 32°F - 120°F 0°C - 49°C
• Flash Rate (Flash/Min.) - 1 Flash/sec
• Rush Current Amps:
• 1.0 @ 12V DC
• .5 @ 24V DC
• Average Current Amps:
• 0.500 @ 12V DC
• 0.250 @ 24V DC

4670026 Datasheet
