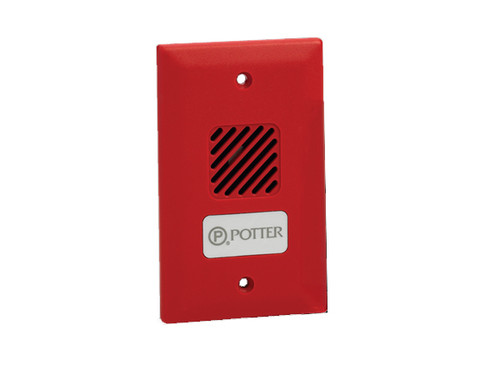

4550014 Potter HP-25TR Red Temporal Terminal Mini Horn

Features:

• Model: HP-25TR
• Manufacturers Part#: 4550014
• Low current consumption
• Wide operating voltage range
• Input terminals: 12-18 AWG
• 2 tone selection: continuous or temporal (code 3)
• Terminal sound synchronization requires a sync module (SMD-103A)
• FIRE decal included
• Available in red or white
• Mounts to a single gang box (handy box)

The HP-25T is designed for alarm signaling in hotels, offices, schools, restaurants, or any individual room where effective audible warning is required by federal, state, or local authority having jurisdiction. When constant voltage from a fire alarm control panel (FACP) is applied to the HP-25T, it produces either a continuous tone or a temporal patter (ANSI) tone, which can be selected by a switch.

• Color - Red
• Input Voltage - Regulated 24V DC/FWR
• Operating Voltage Range - 16-33V DC
• Wiring Type - Terminal
• Mounting Type - Wall or Ceiling Mount
• Temperature Operating Range - 32°F - 120°F (0°C - 49°C)

4550014 Datasheet
