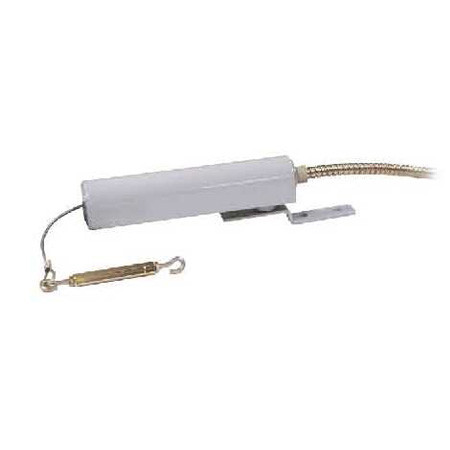

4440003 Potter AFS-101B Fence Sensor Armored

• Model Number: AFS-101B
• Item Number: 4440003
• Dual action alarm sensor
• S.P.D.T. (Form C) for open or closed loop
• Vibration resistance
• Armored cable
• Swivel mounting bracket
• Low cost solution

The AFS-101B: Hardwired Fence Sensor is a fully encapsulated magnetic contact (Form C) S.P.D.T. with enough durability, gap, and vibration resistance, designed for outdoor perimeter protection. The biased technology incorporated onto the design provides a high degree of additional defeat resistance. This is due to the balanced condition that exists within. The fence sensor creates an alarm condition when tension is added by pulling on the wire, or by simply cutting the wire.

Specifications

• Model - AFS-101B
• Operating Gap - 0 ~ 1 5/16
• Contact Type - N.O./N.C.
• Wire Tension - 2.2 ~ 7.7 Lbs
• Max. Switching Current - 0.2 A
• Max. Carry Current - 0.5 A
• Breakdown Voltage - 150VDC min.
• Voltage Rating - 3VA
• Cable Length - 24"
• Temperature Operating Range - 4ºF to 140º (20ºC ~ 60ºC)

4440003 Datasheet
