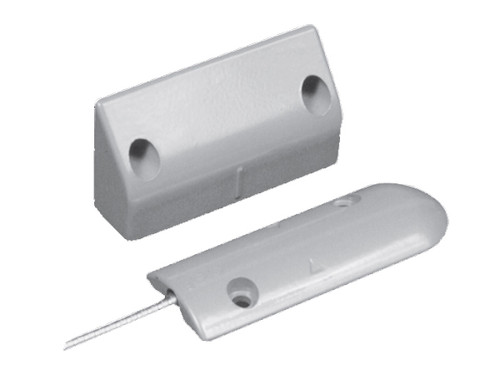

4410014 Potter ODC-56A Overhead Door Contact With Fixed Magnet

• Model Number: ODC-56A
• Item Number: 4410014
• UL and ULC listed
• 2” operating gap
• 24” stainless steel armored cable
• Hermetically sealed reed switch

The ODC-56 Series Overhead Door Contacts are exclusively designed for rugged high traffic installations. The reed switch is hermetically sealed with a PVC shock absorber enclosed within a solid aluminum housing. Installation wires are protected in a 24” stainless steel armored cable. The magnet is enclosed and protected in a heavy duty aluminum housing.

• Contact - 22 AWG 24” Leads
• Contact Rating - 10VA
• Contact Type - Form A N.O.
• Max. Carry Current - 2 Amp
• Max. Switching Current - .5 Amp
• Breakdown Voltage - 250VDC
• Operating Gap - 2”
• Temperature Range - -40°F - 257°F (-40°C - 125°C)

4410014 Datasheet
