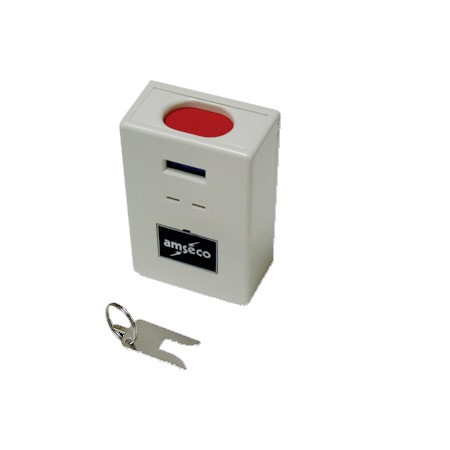

4370034 Potter HUS-7A Latching Hold Up Switch

• Model Number: HUS-7A
• Item Number: 4370034
• Form C contact
• U-shaped key reset
• Status window indicator

The HUS-7A is a single button, latching hold-up switch designed to provide a rapid signal to alarm systems. It is activated by pressing down the single button switch.

A status window indicates the condition of the switch: RED (alarmed), BLUE (armed). A U-shaped key is supplied to reset the HUS-7A. The hold-up switch sends a signal to a dedicated 24 hour hold-up circuit of a burglar control panel.

• Form C contact
• U-shaped key reset
• Status window indicator
• Operating Method - Single-button latching
• Overall Force - 300g - 350g
• Overall Stroke - Up to 7mm (±1)
• Contact Rating:
• 125V DC - 5 Amp
• 30V DC - 5 Amp
• 125V AC - .4 Amp
• Contact Type - Form C N.O./N.C.

4370034 Datasheet
