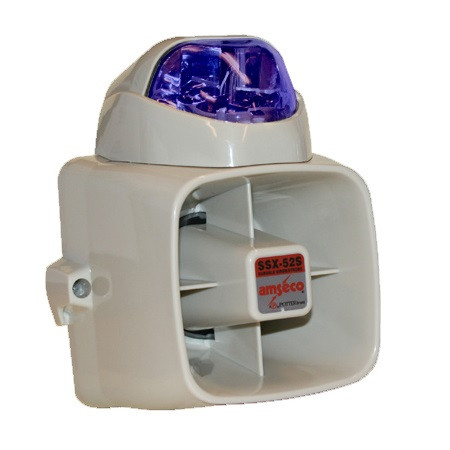

4150026 Potter SSX-52SB Durable Siren & Blue Strobe

• Model Number: SSX-52SB
• Item Number: 4150026
• Self-Contained /Indoor/Outdoor Siren and Siren/Strobe
• Sturdy aluminum back plate
• Strong polycarbonate housing
• Dual tamper protection
• 120dB sound output
• Warble sound output
• Mounts directly to wall or 4” square back box
• Strobe consists of colored mirror and lens

The SSX-52 is a durable indoor/outdoor self-contained siren. The full featured siren consists of a single tone that delivers a warble sound output, 120dB output siren driver, and a dual action reed plunger for cover and rear protection. The SSX-52 is provided with a strong polycarbonate housing and a sturdy aluminum back plate to prevent warping and cracking. The SSX-52 comes completely assembled and ready for installation.

The SSX-52S Siren-Strobe is also available. It includes all the great SSX-52 features with the addition of a colored strobe. The strobe uses a colored mirror and lens to ensure that the color can be easily distinguished, and is available in amber, blue, clear, or red.

The SSX-52S excels in noisy areas such as warehouses, loading docks, print shops, busy production floors, or for indoor/outdoor applications where high quality and high output warning is required.

• Rated Voltage - 12 VDC
• Current Draw - 748 mA Max.
• Operating Voltage Range - 9.6 - 14.4 VDC
• Strobe Specifications
• Flash Rate - 20 - 100 times/min.
• Strobe Candela Rating on Axis - 1.80 Min.
• Lens Color - Blue
• Speaker Specifications
• Tamper Contact Capacity - 0.3A @ 12V DC
• Sound Output - 120dBA
• Operating Temperature Range - -4°F to 149°F / -20°C to 65°C

4150026 Datasheet
