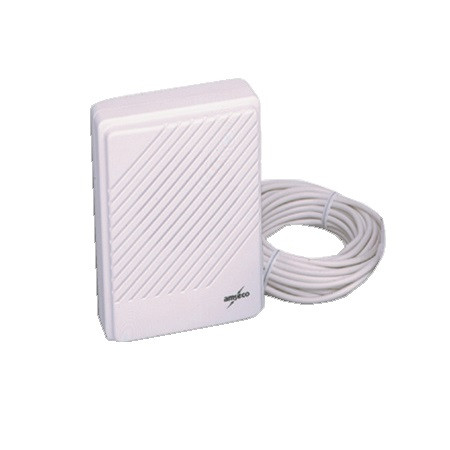

4060003 Potter CM-4KIT Electronic Chime Kit

Features:

• Model Number: CM-4KIT
• Item Number: 4060003
• Fully integrated electronic chime with volume control
• 2 selectable chime sounds for entry/exit
• Selectable high/low open collector triggers output that can be utilized for external circuit
• Low power consumption
• Screw terminal for easy wiring
• Operated with 12VDC or 12VAC
• Stand-alone system or can be integrated with People Counter Series EBP-407C and EWP-202C
• Kit Includes: Transformer, Power Cord, Push Button, Installation Wires, and Hardware for Complete Installation

The CM-4/CM-4L is a high quality electronic low profile door chime that can be used as a stand-alone chime when activated with a push button. They can also be integrated with our complete line of people counters such as EBP-407C and EWP-202C. The CM-4 is a chime only and the CM-4L is a chime with LED light. The CM-4L is specially designed for the hearing impaired, and can be used in noisy and restricted areas where only the light signal is effective. Both can be powered with 12V DC or 12V AC supply.

• Fully integrated electronic chime with volume control
• 2 selectable chime sounds for entry/exit
• Selectable high/low open collector triggers output that can be utilitzed for external cicuit
• Low power consumption
• Screw terminal for easy wiring
• Operated with 12V DC or 12V AC
• Stand-alone sytem or can be integrated with People Counter Series EBP-407C and EWP-202C
• Rated Voltage (AC/DC) - 12V
• Chime Sound Output - 0-85 dB
• Rated Current During Standby - 17mA
• Rated Current During Activated - 300mA
• Wiring Terminals:
  • Ground (-)
  • Positive (+)
• Trigger Signal (JP1):
  • ON: HIGH
  • OFF: LOW
• Operating Temperature Range - 14 - 122°F -10 - 50°C
