4010009 Potter ABB-1033 12VDC Motor Bell & Box

• Model Number: ABB-1033
• Item Number: 4010009
• Low current motor driven bell (60mA at 12V DC)
• 2 reed tamper switches (PSW-1) for outer covers, inner baffle plate, and back of box
• 12V DC operating voltage
• Durable, weather resistant powder coating paint
• Suitable for use with most control panels
• Evenly spaced louvers for a higher sound output
• Exterior color: Beige

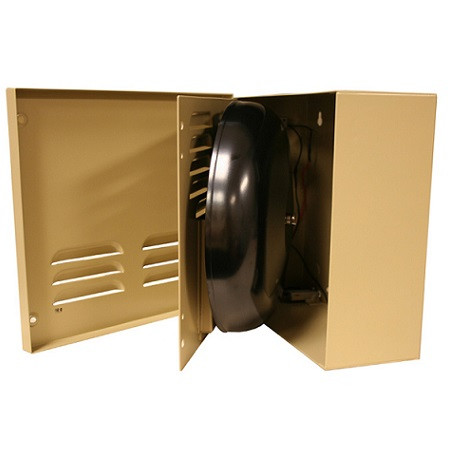

The ABB-1033 box is constructed of steel with a durable beige powder coating finish to prevent corrosion. It operates on 12V DC and draws a low 60mA. The ABB-1033 implements an exclusive low current patented motor driven bell mounted to a removable inner baffle plate and generates a sound output of 85 dB at 10 ft. in the open field. Two reed plunder switches (PSW-1) are designed into the bell box to provide complete tamper protection.

• Operating Voltage - 8-17.5V DC
• Starting Voltage - 8VDC
• Total Weight - 15.5lb
• Tamper Switching Current - 0.3A
• Bell Gong Size - 10
• Rated Current at 12V DC - 60mA
• Sound Output dBA at 10 ft. - 85dBA
• Rated Current - 100mA
• Rated Voltage - 12VDC

4010009 Datasheet
