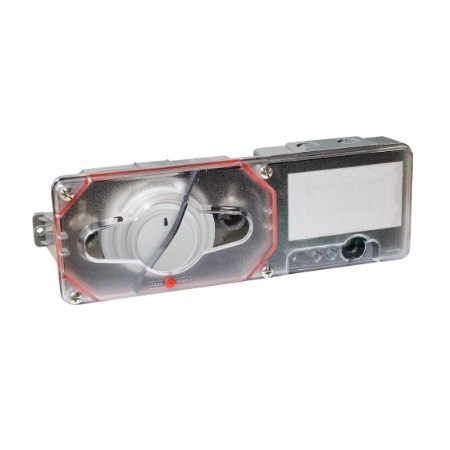

3992795 Potter PAD300-DUCT Duct Detector

Features:

• Model Number: PAD300-DUCT
• Item Number: 3992795
• Detects Smoke in Building HVAC Ducts
• Ships Complete with Housing and Head
• Compatible with Addressable IPA and AFC/ARC Series Panels
• SLC In-and-out Wire Terminals
• SLC Class A, Class X & Class B
• Installation Without Removing the Head
• Listed Air Velocity of 100 to 4,000 ft/minute

The PAD300-DUCT is designed and built to meet all local requirements, as well as the NFPA regulations regarding duct smoke detectors. Air sampling is accomplished by two (2) tubes which protrude into the duct. An exhaust tube of one standard length (7”) is supplied in the installation kit with the smoke duct unit. Once the duct width has been determined the air intake, sampling tubes must be ordered.

Specifications

• Duct Detector Model Number - PAD300-DUCT
• Operating Voltage - 24 VDC
• Current Draw - 300 μA
• Detector Head Model - PAD300-DD
• Detector Head Type - Photoelectric
• Alarm Set Point - Fixed at 2.5% / ft (8%/m)
• Sensitivity Test Method - Self-diagnostic Test
• Air Velocity - 100 ft/min to 4000 ft/min
• Ambient Temperature - 32°F to 120°F (0°C to 49°C)
• Humidity - 10% to 85% Relative Humidity (Non-condensing)
• Housing Material - Plastic Backbox, Clear Plastic Cover
• Finish - Gray Backbox with Clear Cover
• Dimensions - 13 1/2”L x 4 1/2” W x 2 1/4” H
• Maximum Net Weight - 2 lbs.
• Sampling Tubes - 2.5 ft., 5 ft., or 10 ft.
