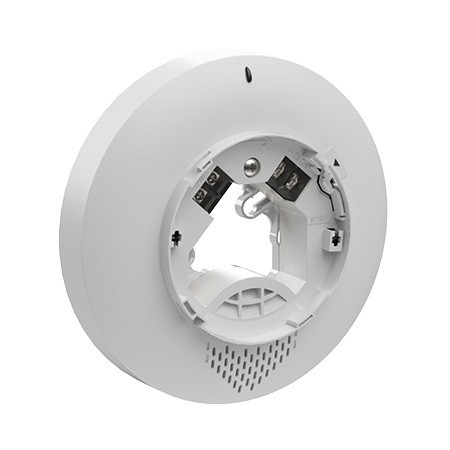

3992786 Potter PAD300-LFSB Low Frequency Sounder Base

Features:

• Model Number: PAD300-LFSB
• Item Number: 3992786
• Addressable low frequency sounder base, allows for single station, grouped or all call activation
• May be mapped to any device connected to the control panel
• Terminals accept 22 to 12 AWG wire sizes
• Supports Class A, Class X and Class B wiring
• Does not require SLC Loop address, uses PAD sub point addressing feature
• Complies with the Low Frequency Signal Requirements per NFPA 72 and UL 464 for Audible Signaling Devices
• 24 VDC Sounder base power connection supervised internally by each sounder base. No external power supervision relays required

The Addressable Low Frequency Sounder Base (PAD300-LFSB) is a sounder base that may be utilized in a variety of applications. The base has a locking feature for the detector that may be used or removed in the field. Once the head is removed, the sounder is accessible in the bottom of the unit.

Specifications

• SLC Voltage - 24 VDC
• SLC Standby Current - 300 μA
• PWR Voltage - 16-33 VDC
• PWR Active Current - 155mA
• Alarm LED Current - 1.4 mA
• Sound Pressure Level - 75dB @ 10ft per UL464, 85dB @ 10ft per UL268
• Installation Temperature Range - 32 to 150°F (0°C to 66°C)
• Operating Humidity Range - < 93% (Non-condensing)
• Dimension - 6.4 in (163 mm)
• Weight - 240 g (8.47 oz)
• Height - 1.57 in (40 mm)
