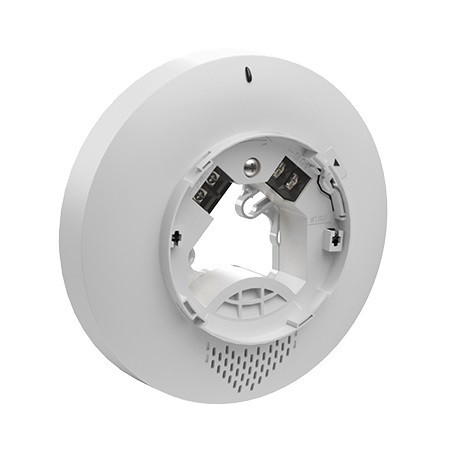

3992785 Potter PAD300-SB Sounder Base

Features:

• Model Number PAD300-SB
• Item Number 3992785
• Integrated Sounder in base
• UL464 and UL268 Listed
• Sounder independent of detector, allows for a single station, grouped or all-call
• Terminals accept 22 to 12 AWG wire sizes
• Supports Class A, Class X and Class B wiring
• Does not require SLC Loop address
• UUKL Listed for Smoke Control

The Addressable Sounder Base 6” (PAD300-SB) is a sounder base that may be utilized in a variety of applications. The base has a locking feature for the detector that may be used or removed in the field. Once the detector is removed, the sounder is accessible in the bottom of the unit.

Specifications

• SLC Voltage - 24 VDC
• SLC Standby Current - 300 μA
• PWR Voltage - 16- 33 VDC
• PWR Active Current - 42mA
• Alarm LED Current - 1.4 mA
• Sound Pressure - 75dB @ 10ft per UL464, 85dB @ 10ft per UL268
• Installation Temperature Range - 32 to 150°F (0°C to 66°C)
• Operating Humidity Range - < 93% (Non-condensing)
• Dimension - 6.4 in (163 mm)
• Weight - 199 g (7.40 oz)
• Height - 1.57 in
