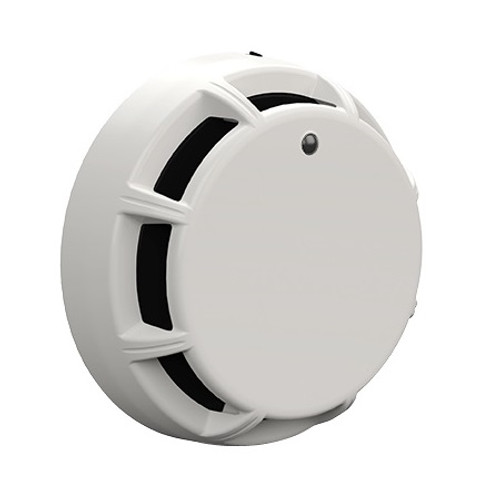

3992772 Potter PAD 200-PCD Photot/CO Detector

Features:

• Model Number: PAD 200-PCD
• Item Number: 3992772
• Photoelectric Smoke Detection compliant with UL 268 7th Edition
• Carbon Monoxide (CO) detection compliant with UL 2075
• 10 year Carbon Monoxide detection lifespan with built in end of life indication
• Walk Test mode allows for fast easy validation of CO sensor operation
• Low profile, less than 2 inches with the base
• Wide selectable sensitivity range of 1.0 to 3.7%/foot
• Sensor communicates sensitivity to control panel
• UL listed smoke calibration and sensitivity

The Photoelectric Smoke Sensor and the Carbon Monoxide (CO) sensor are both listed Analog Addressable sensors compatible with fire alarm control panels that utilize the Potter Addressable Device (PAD)protocol.

Specifications

• Operating Voltage - 24 VDC
• Detector Current Draw - 300 μA
• Alarm indicator - 1 LED
• Alarm set-point range - 1.1-3.5 %/ft. (3.6-11%/m)
• Installation temperature range - 32°F to 120°F (0°C to 49°C)
• Operating relative humidity range - 0% to 93% (Non-condensing)
• Start-up time - 1 sec.
• Maximum number of addresses per loop - 127
• Maximum number of lighted indicators in alarm per loop - 30
• Color - Eggshell White
• Weight (without base) - 113 g (4.0 oz)
• Dimensions (without base) - Height: 1.35 in (34 mm), Diameter: 3.93 in. (100 mm)
