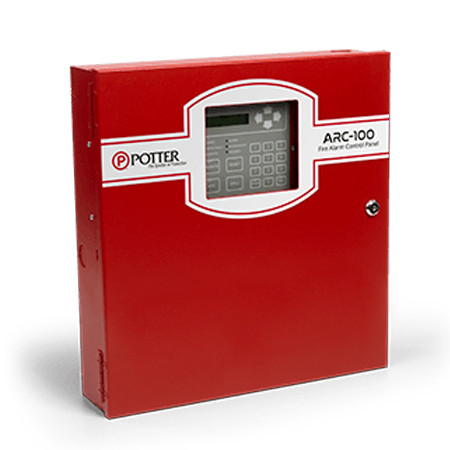

3992755 Potter ARC-100 100 Point Fire Alarm Releasing Control Panel

• Model Number: ARC-100
• Item Number: 3992755
• 100 addresses available on this analog addressable system
• Additional system capacity achieved via multi-point SLC modules
• 99 software zones
• NFPA 72 Compliant Smoke Sensitivity Test Built-In
• System Operates as Class A or Class B for SLC, P-Link and NACs
• 5 Amp Power Supply, Expandable to 310 amps

The ARC-100 is an analog/addressable releasing fire alarm system with a total system capacity of 100 addresses. Additional capacity on the system is achieved using multi-point SLC modules. The control panel utilizes the exclusive Potter protocol that includes a complete line of sensors and modules. Each SLC may be comprised of any combination of smoke sensor, heat detectors or modules and allows for a total of 50 ohms of impedance and may use any wire compliant with the National Electrical Code (NEC).

Specifications

• Dimensions - 16"W x 17"H x 3 7/8"D
• AC Mains
  • 3.0 Amps @ 120 VAC 50/60 HZ
  • 2.0 Amps @ 240 VAC 50/60 HZ
• Enclosure - 16 gauge cold rolled steel with removable locked door with Lexan viewing window
• Battery
  • Standby Current-130 mA
  • Alarm Current-200 mA
  • 5 Amps power for NACs, I/O, and P-Link
  • 3 Amps per NAC, regulated
  • 1 Amp per I/O circuit, regulated
  • Battery Charger range 8-55 Ah
  • Battery Charger voltage 27.3 VDC
  • P-Link maximum current of 1 Amp
• Temperature and Humidity Range - 32° to 120° (0°C to 49°C) with a maximum humidity of 93% non-condensing.
