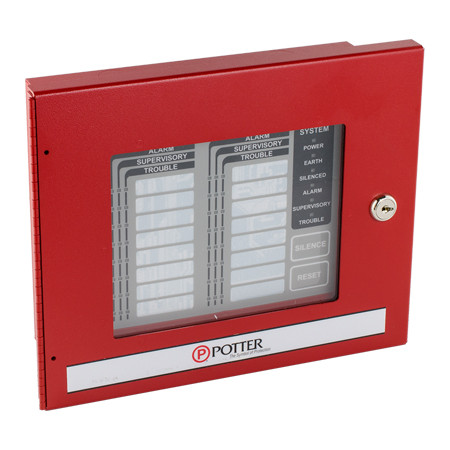

3992727 Potter LED-16F 16 Zone LED Annunciator Flush Mount

• Model Number: LED-16F
• Item Number: 3992727
• Capable of displaying alarms, supervisory, trouble status for 16 zones
• System Silence and Reset buttons
• Common LEDs for status indication
• Maximum 31 LED-16s for PFC-6800, P-400, P-400R, and IPA-4000.
• Maximum 10 LED-16s for PFC-6030, 6075, 6075R, 6200, and P-100, P-200, P-300, IPA-60, and IPA-100.
• Maximum P-Link wire length of 6,500 feet

The LED-16F is a LED remote annunciator for the PFC series, Potter Plus Series, and IPA series addressable fire control panels. The LED-16F communicates using a RS-485 connection to the main panel providing zone specific indication of Alarm, Supervisory, Trouble conditions.

Specifications

• Standby Current - 20 mA
• Alarm Current - 25 mA
• Operating Temperature - 0°C-49°C (32°F-120°F)
• Operating Humidity Range - 0 to 93% (non-condensing)
• Maximum Wire Length - 6500 ft.
• Maximum Annunciators - 31
• Flush Mount Size (WxHxD) - 11 3/8" x 9-1/4" x 7/8"
• Surface Mount Size (WxHxD) - 11 3/8" x 9-1/4" x 3 1/8"
• Wire Gauge - 12 AWG-22 AWG
