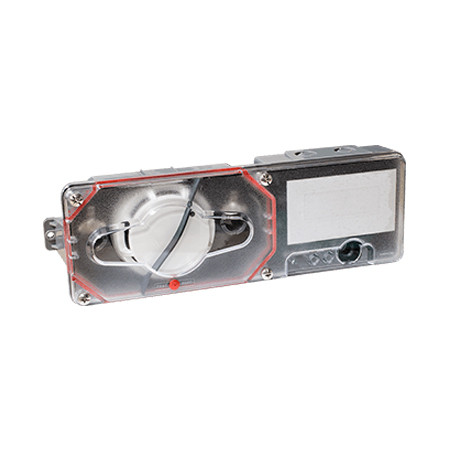

3992713 Potter PAD 100-DUCT Analog Addressable Duct Detector

• Model Number: PAD 100-DUCT
• Item Number: 3992713
• Detects smoke in building HVAC ducts
• Ships complete with housing and head
• Compatible with addressable IPA series panels
• SLC in and out wire terminals
• SLC Class A, Class X & Class B
• Installation without removing the head

The PAD100-DUCT is designed and built to meet all local requirements, as well as the NFPA regulations regarding duct smoke detectors. Air sampling is accomplished by two tubes which protrude into the duct. An exhaust tube of one standard length (7”) is supplied in the installation kit with the smoke duct unit. Once the duct width has been determined the air intake sampling tubes must be ordered. Sampling tubes are supplied in three standard lengths: 2.5 ft., 5 ft.,and 10 ft. and cut to size to fit the duct. Mounting the duct smoke unit is accomplished by the use of a template and 2 sheet metal screws, which are provided. Mounting can be achieved without the removal of the clear cover which is secured by 4 capture screws.

Specifications

• Operating Voltage - 24 VDC
• Current Draw - 300 ?A
• Detector Head Model - PAD100-DD
• Detector Head Type - Photoelectric
• Sensitivity Test Method - Self diagnostic test
• Air Velocity - 100 to 4000 ft./min
• Ambient Temperature - 32°F to 120°F (0°C to 49°C)
• Humidity - 10% to 85% Relative humidity (noncondensing)
• Housing Material - Plastic backbox, clear plastic cover
• Finish - Gray backbox with clear cover
• Dimensions - 13 1/2"L x 4 1/2" W x 2 1/4" H
• Maximum Net Weight - 2 lbs.
• Sampling Tubes - 2.5 ft., 5 ft., or 10 ft.

3992713 Datasheet
