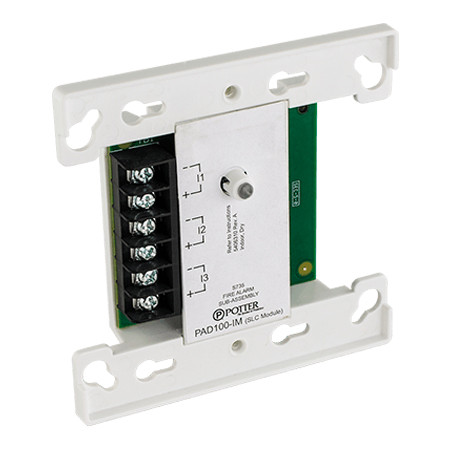

3992708 Potter PAD 100-IM Isolator Module

• Model Number: PAD 100-IM
• Item Number: 3992708
• Isolates short circuits within the SLC loop.
• SLC Class A, Class X & Class B
• Mounts in a standard 4" or double gang box
• Wire terminals accessible when mounted in box
• All wiring terminals accept 22 to 12 AWG
• Product includes a 5 year warranty

The PAD100-IM module does not require an SLC loop address but does consume power from the SLC loop. The module provides protection against short circuits by limiting the number of affected devices. When the PAD100-IM detects a short circuit on the SLC loop, it disconnects the outgoing side of the module to prevent the short from affecting the rest of the SLC loop. The PAD100-IM includes one red LED to indicate the modules status. When the module is shorted, the LED will light continuously. Once the short is removed, the PAD100-IM will automatically restore to a cleared condition.

Specifications

• Operating Voltage - 24.0V
• Max SLC Standby Current - 100?A
• Max SLC Short Circuit Current - 2.75mA
• Max no. of PAD100-IM on SLC loop - 254 Units
• Operating Temperature Range - 32 to 120°F (0 to 49°C)
• Operating Humidity Range - 0 to 93% (non-condensing)
• Dimensions - 4.17" (106mm)L × 4.17"(106mm)W × 1.14" (29mm)D
• Mounting Options - Standard 4" Square or Double Gang Box
• Shipping Weight - 0.6 lbs

3992708 Datasheet
