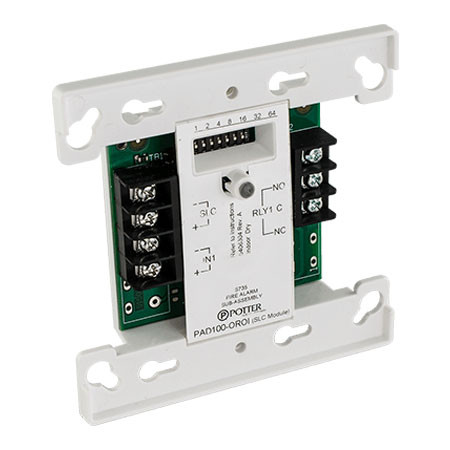

3992702 Potter PAD-100OROI One Relay One Input Module

• Model Number: PAD100-OROI
• Item Number: 3992702
• One (1) Class B monitoring input
• One (1) Form C relay contact
• SLC Class A, Class X & Class B
• Mounts in a standard 4" or double gang box
• Wiring terminals accessible when mounted in box
• All wiring terminals accept 22 to 12 AWG

The PAD100-OROI uses one (1) SLC loop address when monitoring one (1) Class B circuit and providing one (1) Form C relay contact.The module mounts on either a 4” square or double gang box. Themodule is capable of monitoring one (1) Class B circuit. The PAD100-OROI includes one red LED to indicate the module’s status. In normalcondition, the LED flashes when the device is being polled by thecontrol panel. When a the input is activated, the LED will flash at afast rate.

Specifications

• Operating Voltage - 24.0V
• Max SLC Standby Current - 240?A
• Max SLC Alarm Current - 240?A
• Relay Contacts - 2A @30VDC, 0.5A @125VAC
• Max Wiring Resistance of IDC - 100 ?
• Max Wiring Capacitance of IDC - 1?F
• EOL Resistor - 5.1K ?
• Operating Temperature Range - 32 to 120°F (0 to 49°C)
• Operating Humidity Range - 0 to 93% (non-condensing)
• Max no. of Module Per Loop - 127 units
• Dimensions - 4.17" (106mm)L x 4.17" (106mm)W x 1.14" (29mm)D
• Mounting Options - Standard 4" Square or Double Gang Box
• Shipping Weight - 0.6 lbs
