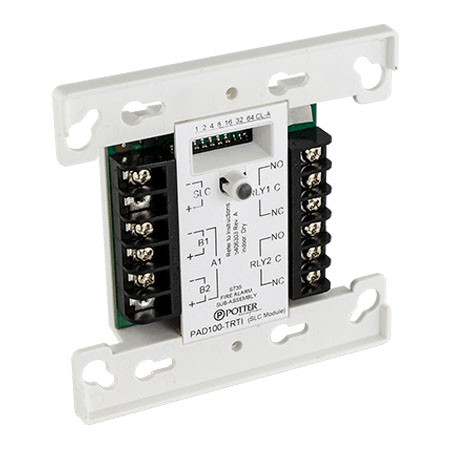

3992701 Potter PAD 100-TRTI Two Relay Two Input Module

• Model Number: PAD 100-TRTI
• Item Number: 3992701
• Single module with dual contact monitoring inputs
• Two (2) Class B or one (1) Class A monitoring inputs
• Two (2) Form C relay contacts
• SLC Class A, Class X & Class B
• Mounts in a standard 4" or double gang box
• Wiring terminals accessible when mounted in box

The PAD100-TRTI uses one (1) SLC loop address when monitoring two (2) Class B circuits or one (1) Class A circuit. The PAD100-TRTIalso provides two (2) Form C relay contacts. The module mountson either a 4" square or double gang box. The module is capableof monitoring two (2) separate Class B circuits making it ideal formonitoring sprinkler waterflow and valve tamper switches when theyare located in the same proximity. The PAD100-TRTI includes onered LED to indicate the module's status. In normal condition, the LEDflashes when the device is being polled by the control panel. When aninput is activated, the LED will flash at a fast rate.

Specifications

• Operating Voltage - 24.0V
• Max SLC Standby Current - 240?A
• Max SLC Alarm Current - 240?A
• Relay Contacts - 2A @30VDC, 0.5A @125VAC
• Max Wiring Resistance of IDC - 100 ?
• Max Wiring Capacitance of IDC - 1?F
• EOL Resistor - 5.1K ?
• Operating Temperature Range - 32 to 120°F (0 to 49°C)
• Operating Humidity Range - 0 to 93% (non-condensing)
• Max no. of Module Per Loop - 127 units
• Dimensions - 4.17" (106mm)L x 4.17" (106mm)W x 1.14" (29mm)D
• Mounting Options - Standard 4" Square or Double Gang Box
• Shipping Weight - 0.6 lbs
