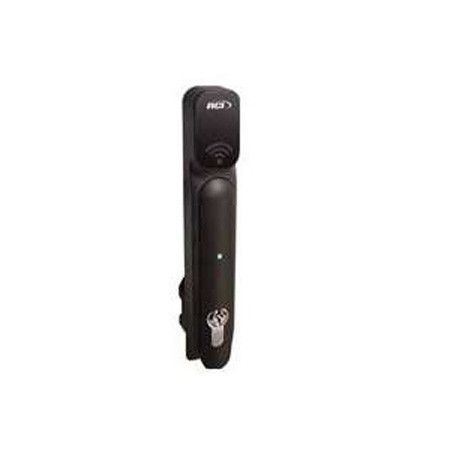

3525PRX Dormakaba RCI Electro-Mechanical Rack Handle Lock with Proximity Reader

Features:

• Remote lock and unlock control
• Single or multi-point locking
• Low power, gear motor driven mechanism
• Momentary or continuous lock actuation
• High Security DIN lock for mechanical key override
• Fits industry standard panel preparations
• Accommodates both left and right hand doors
• 78.7" (2000mm) Wire Harness and Hardware Kit included

The electronic locking rack handle provides the functionality of a manual latching system with the added benefit of electronic locking for access control and remote monitoring. It can be combined with any accesscontrol device for a basic self contained electronic access solution. Alternatively, the electronic rack handle can provide access control to networked rack control and monitoring systems for addressable remote access control over the internet. Integrated lock sensors provide local LED indication plus generate output signals for remote access monitoring.

Specifications

• Material & Finish
  • Housing, handle, mounting bracket - Glass-filled nylon, black
  • Shaft, rotation limiter - Die-cast zinc,bright sealer
• Electrical Specifications
  • Recommended operating voltage - 12VDC to 24VDC
  • Typical operating current - Less than 200mA at 12 VDC
  • Peak / stall operating current - 1 Amp
  • Standby current - 50mA Max.
  • Output signal rating - 200mA Max. load
• Connector Pin Assignment
  • PIN 1 - Ground (-)
  • PIN 2 - Power (+)
  • PIN 3 - Not Used
  • PIN 4 - Control signal
  • PIN 5 - Electronic Lock status output
  • PIN 6 - Mechanical lock status output
• Mating Connector Detail
  • Crimp socket
  • Crimping contact for socket
  • 24 AWG wire minimum recommended
