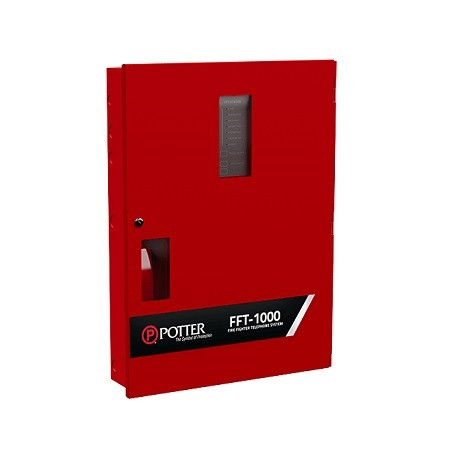

3520669 Potter FFT-1000L Fire Fighter’s Telephone System Left Hinge Door

Features:

• Model Number: - FFT-1000L
• Item Number: - 3520669
• Fire Fighter Telephone System
• Option for right hinge or left hinge door
• Right hinge and left hinge door orientation for accessible mounting next to voice panel
• 24 Class B or 12 Class A phone circuits
• Expandable up 96 Class A or 96 Class B phone circuits
• P-Link device
• Operates as standalone system
• Trouble and Low AC Relay

The FFT-1000 Fire Fighter Telephone panel allows users from remote areas to effectively communicate with the FFT-1000 panel. The panel utilizes fireman’s phone jacks and remote fireman’s handsets to establish 2-way communication from the remote areas to the FFT-1000. The panel can communicate in conjunction with the IPA-400V via P-Link or operate as a standalone system. The panel is equipped with 24 Class B or 12 Class A phone circuits and is expandable by using the FFT-EXP.

Specifications

• Standby Current - 154 mA
• Alarm Current - 295 mA
• Operating Temperature - 0°C-49°C (32°F-120°F)
• Operating Humidity Range - 10%-93% @ 30°C (86°F) noncondensing humidity
• Maximum P-Link Length - 6500 ft
• Maximum F-Link Length - 20 ft
• Size (WxHxD) - 21”W x 29”H x 5”D

3520654 Datasheet
