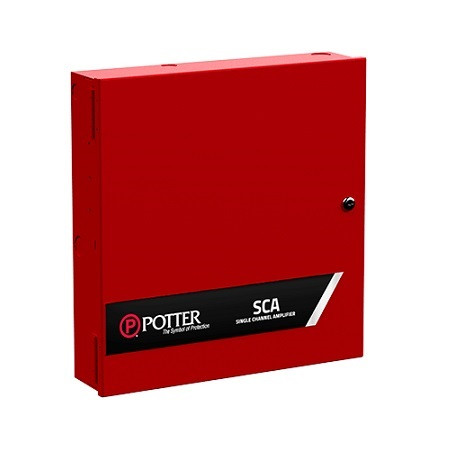

3520668 Potter SCA-2570 Single Channel 25W, 25V or 70V Selectable Amplifier

Features:

• Model Number: SCA-2570
• Item Number: 3520668
• 25W, 50W and 100W amplifier
• 25VRMS and 70VRMS audio power
• 8 Class A or 8 Class B speaker outputs
• P-Link device
• Single channel and dual channel amplifiers
• 120VAC or 240VAC with battery charger circuit
• Maximum of 31 amplifier

The SCA and DCA amplifiers are a new addition to the Potter proprietary P-Link device catalog. Potter offers seven variations of amplifiers with wattages up to 100W to support small, medium, and hi-rise applications. The amplifiers have the capability to distribute up to two audio channels simultaneously across multiple speaker zones. Each amplifier is supplied with a stacker terminal block to provide accommodations for 8 Class B or 8 Class A speaker outputs. The SCA and DCA amplifiers offer output power at 25VRMS and 70VRMS.

Specifications

• Standby Current - 58 mA
• Alarm Current - 608 mA
• Operating Temperature - 0°C-49°C (32°F-120°F)
• Operating Humidity Range - 10%-93% @ 30°C (86°F) noncondensing humidity
• Maximum P-Link Length - 6500 ft.
• Maximum V-Link Length - 6500 ft.
• Maximum Amplifiers - 31
• Size (WxHxD) - 16” x 17” x 3 7/8”
