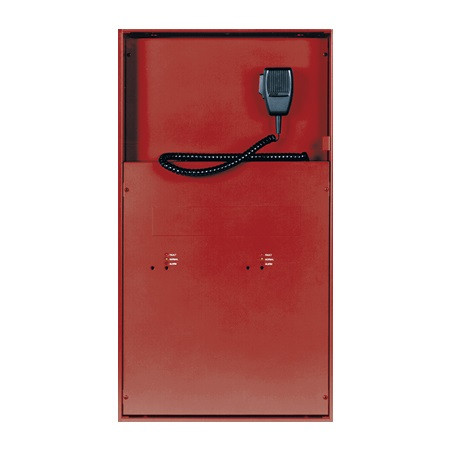

3500010 Potter PVX-200/8Z 200 Watt Voice Panel 8 Class B Speaker Circuits - Red

• Model Number: PVX-200/8ZR
• Item Number: 3500010
• Clean Dead-front Construction
• Digitally Recorded Automatic Evacuation Message
• 50/150 Watt Bullet-Proof Amplifier
• 25 or 70 VRMS Field Selectable
• 120 VAC Power Supply and Battery Charger
• Live Microphone Override of Message and Tone
• Analog Addressable Compatible
• High Reliability, No Maintenance, Fully Supervised
• Also sold and branded under Evax by Potter Model Number: EVAX-200R-8Z

The PVX-200 / PVX-150 panels provide 200W and 150W of speaker power respectively. Speaker zones can be configured for general alarm or alarm by zone operation as required. Digital message repeater, microphone, 120 VAC power supply and battery charger are all built in. PVX Series voice evacuation panels can be configured for Churches, Restaurants, Movie Theaters, Auditoriums and High Rise buildings. The paging microphone is an integral component. Removal of the micorphone will cuase a "Trouble" condition which will be reported locally, as well as through the FACP. The PVX-150 is housed in a surface or semi-flush mounted backbox with a hinged and key locked door.

3500010 Datasheet
