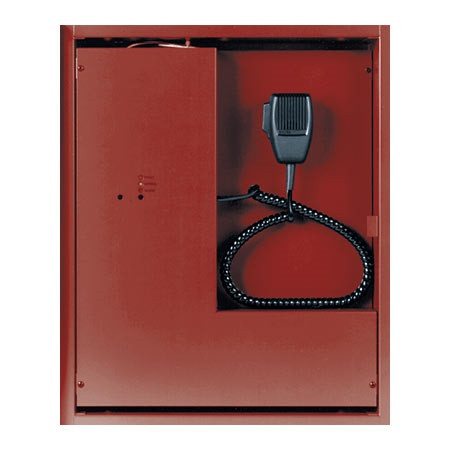

3500002 Potter PVX-50/4Z 50 Watt Voice Panel 4 Class B Speaker Circuits - Red

• Model Number: PVX-50/4ZR
• Item Number: 3500002
• Clean Dead-front Construction
• Digitally Recorded Automatic Evacuation Message
• 50 Watt Bullet-Proof Amplifier
• 25 or 70 VRMS Field Selectable
• 120 VAC Power Supply and Battery Charger
• Live Microphone Override of Message and Tone
• Analog Addressable Compatible
• High Reliability, No Maintenance, Fully Supervised
• Also sold and branded under Evax by Potter Model Number: EVAX-50R-4Z

The PVX-50 operates with any Fire Alarm Control Panel (FACP), and provides 50 Watts of speaker power.
The PVX-50 includes all necessary features to provide an effective voice evacuation system. With the addition of zone splitters, remote microphone panels, and expander modules, the PVX-50 can be custom configured to satisfy the needs of most applications.
A digital message repeater (DMR) is built into the PVX-50. The selection of alarm tone and automatice message repears, as well as the 6 hour delay of the AC power failure reporting feature are all field configurable.
The pagin microphone is an integral component. Removal of the micorphone will cuase a "Trouble" condition which will be reported locally, as well as through the FACP.
The PVX-50 is housed in a surface or semi-flush mounted backbox with a hinged and key locked door.

Specifications

• Primary Power - 120VAC@ 0.8A
• 24 VDC Battery Power
  • 0.18A Standby
  • 1.00A Alarm
• Output - 50 Watts @ 25/70 VRMS Tone and Voice
• Backbox Dim - 14.5 x 18 x 4"
• Color - Red (std) Charcoal Grey (optional)
