3006462 Potter RA-6075R Lcd Remote Anctr Releasing

• Model Number: RA-6075R
• Item Number: 3006462
• Standby Current: 20 mA
• Alarm Current: 25 mA
• Operating Temperature: 0°C-49°C (32°F-120°F) 10%-93% @ 30°C (86°F) non-condensing humidity
• Maximum Wire Length: 6500 FT
• Maximum Annunciators: 31
• Size (WxHxD): 8” x 6-1/4” x 1-5/8”
• Wire Gauge: 14 AWG-22 AWG

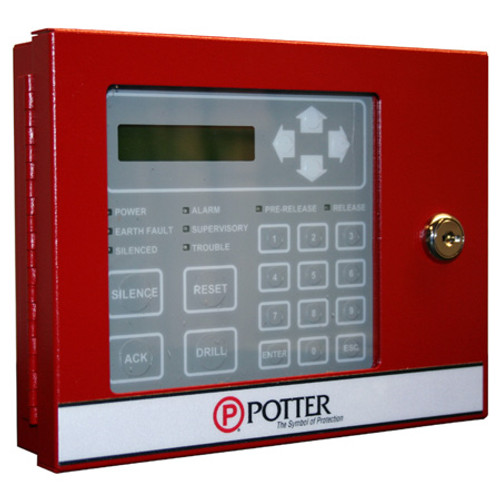

The RA-6075R is a LCD remote annunciator for the PFC-6075R addressable releasing fire control panel. The RA-6075R communicates using a RS-485 connection to the main panel providing common indication of Alarms, Supervisory, Trouble and other system status and control functions. The RA-6075R features a 16x2 LCD display with LED’s for Power, Alarm, Supervisory, Trouble, and Silenced conditions. It also provides Release and Pre-Release LED’s to indicate releasing status. It can be mounted on a single gang electrical box or a two square electrical box. The annunciator is enclosed in a sheet metal enclosure and has a Potter lock securing the keypad.
