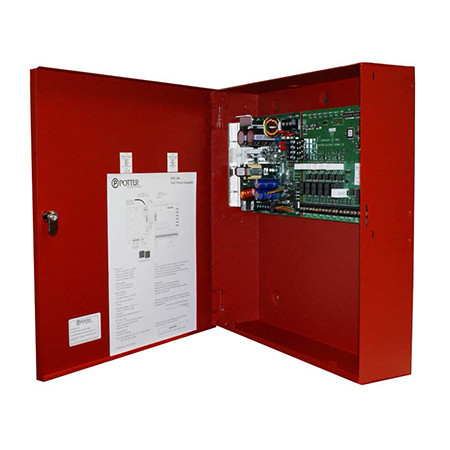

3006437 Potter PSN-106 10 Amp 6 NAC Power Supply

• Model Number: PSN-106
• Item Number: 3006437
• PSN-106 has 10 amps with 6 Outputs
• Outputs Rated at 3 amps max each
• Can be configured as up to three class “A” Style "Z" notification circuits
• Supervised Battery Charger: 27.3 @ 1A (supports 7-55 AH batteries)

Specifications

• Two Trouble Relays (5A at 30VDC)
• General System Trouble (programmable for AC delay)
• Low AC Trouble
• Diagnostic LED’s
• Status LED’s for Active NAC and NAC trouble conditions
• Status LED’s for Earth Fault (Amber), AC (Green), Battery
• Fault (Amber)
• Trouble Memory feature captures troubles which have previously restored
• Synchronized notification appliance circuits
• Potter/AMSECO®, Wheelock®, Gentex®, System Sensor®
• Configurable output circuits (DIP switch sets options for each circuit)
• Reference EOL allows 2K – 27K EOL value to be used
• Quadrasync provides panel wide synchronization of same or multiple brands
• PassThru mode allows the Outputs to match the Input Signal

3006437 Datasheet
