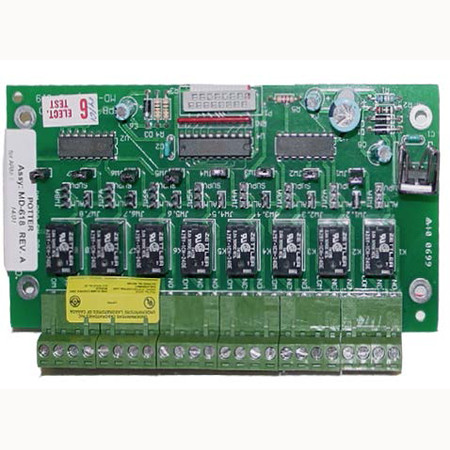

3002125 Potter ARM-8 Auxiliary 8 Relay Module for PFC-5000

• Model Number: ARM-8
• Item Number: 3002125
• 8 Relay Card
• All relays are form C
• Individual/Configurable relays can be grouped to operate
• Directly powered from fire alarm control panel
• Simplistic configuration with jumpers

The ARM -4/8 Auxiliary Relay Module provides either 4 or 8 relays to any of the PFC-5000 series panels. The relays are configured to the initiating zones of the panel as either a common alarm or common supervisory. In addition, the relay can be configured to a respective zone (Zone 1 to Relay 1, Zone 2 to Relay 2, etc.). Blocks of relays can also be configured to one initiating zone as well. Each relay is a low voltage relay rated at 2.0 amps and 30 VDC.

3002125 Datasheet
