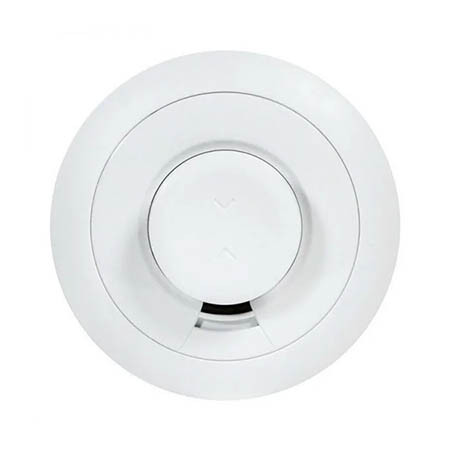

2GIG-SMKT8E-345 2GIG Encrypted Smoke, Heat, and Freeze Detector for EDGE and GC2e/GCe Panels Only

Features:

• Meets new UL217 8th edition and UL268 7th edition requirements
• Designed to recognize smoke from some synthetic materials
• Monitors and reports on excessive temperature variations
• Optical smoke detection chamber for improved smoke detection
• Rate of Rise alert is sent to the panel and a siren is triggered once the room temperature is 104°F and the temperature rises 15 degrees or more in one minute
• Extreme high/low temperature alerts
• 2-year product warranty
• Long-lasting battery with projected life of 10 years
• eSeries encrypted sensor compatible with 2GIG GC2e, GC3e and Edge
• Includes (2) CR123A Lithium Batteries

The 2GIG Smoke Heat Freeze Detectors are designed to recognize smoke from common synthetic materials and decrease nuisance alarms from everyday cooking. Using advanced detection algorithms and a sophisticated photo-electric optical sensor, these two detectors meet new UL standards.

Specifications

• Ordering Part Number - 2GIG-SMKT8E-345
• Wireless Signal Range - 350 ft, open air with Wireless Control Panel
• Transmitter Frequency - 345 MHz
• Compatibility - 2GIG-SMKT8e-345 works with GC2e and GC3e Panels only
• Supervisory Interval - 70 minutes
• Dimensions (D x H) - 4.7" x 1.8"
• Weight - 0.46 lbs
• Audible Alarm - > 85dB (A) at 10ft (3m) minimum
• High Temperature Level - 134˚F +⁄- 4˚F
• High Temperature Rate of Rise - Temperature above 104˚F and increases 15˚F or more in one minute
• Low Temperature Level - 40˚F +⁄- 4˚F, Reset at 45˚F +⁄- 4˚F
• Operating Temperature - -40° to 100°F
• Operating Rel. Humidity - 15% to 95%, non-condensing
• Batteries - 2 x CR123A
• Projected Battery Life - 10 years
• Warranty - 2 years

2GIG-SMKT8E-345 Datasheet
